Unit · AXIAL-PISTON PUMP
AH A10V O 71 FHD /31L-PSC62N00 -SO525R910978938
Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO71FHD/31L-PSC62N00-SO525, material number R910978938. Nominal size: NG 71. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00). Special version no. 525.
- Number
- R910978938
- Type code
- AH A10V O 71 FHD /31L-PSC62N00 -SO525
- Group
- A10VO 71
- Edition
- 06/2020

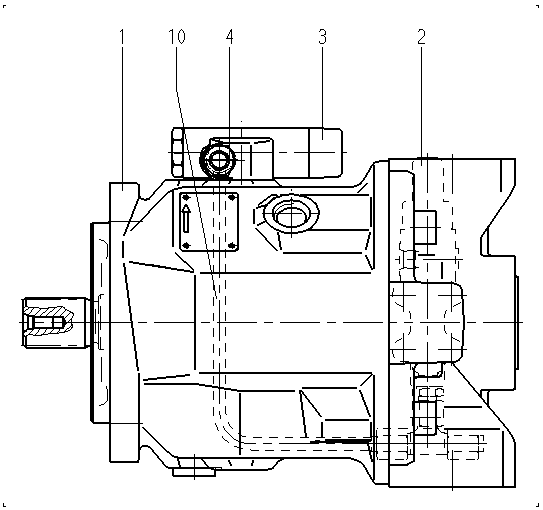

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910978918 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533818 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533803 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910921696 | ADAPTER Assembly parts list →L | 1 | ||
| R910972411 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are the same as the standard version) | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | Without through drive | N00 |
