Unit · AXIAL-PISTON PUMP
A A10VSO 45 DFR1/31R-PPA12KB2 -SO303R910979768
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45DFR1/31R-PPA12KB2-SO303, material number R910979768. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: for flange ISO 3019-2 Diameter, 80, 2-hole 3/4 in 11T 16/32DP (KB2). Special version no. 303.
- Number
- R910979768
- Type code
- A A10VSO 45 DFR1/31R-PPA12KB2 -SO303
- Group
- A10VSO 45
- Edition
- 06/2020

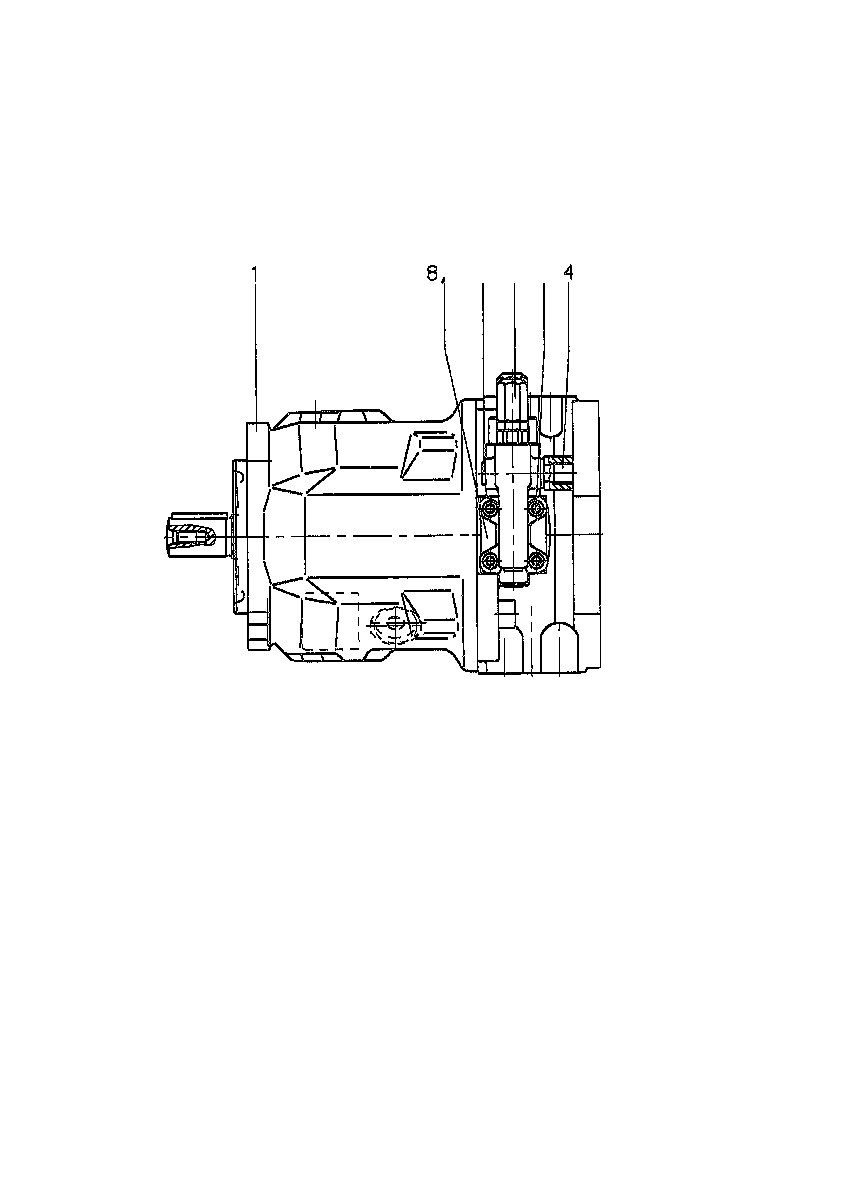

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910979727 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902539689 | CONTROL VALVE Assembly parts list →L | 1 | |
| 4 | R910921653 | ADAPTER Assembly parts list →L | 1 | |
| 8 | R910932670 | INTERMEDIATE PLATE | 1 | |
| 9 | R910515078 | O-RINGD | 3 | |
| 10 | R910229296 | SOCKET HEAD CAP SCREW | 4 | |
| 11 | R909154478 | SCREW PLUGD | 1 | |
| 15 | R902417268 | SEAL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | For flange ISO 3019-2 Diameter, 80, 2-hole 3/4 in 11T 16/32DP | KB2 |
