Unit · AXIAL-PISTON PUMP

AA10VO71DFE1/31R-PSC12H00-SO640R910979804

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFE1/31R-PSC12H00-SO640, material number R910979804. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Special version no. 640.

Number: R910979804
Type code: AA10VO71DFE1/31R-PSC12H00-SO640
Group: A10VO 71
Edition: 06/2020

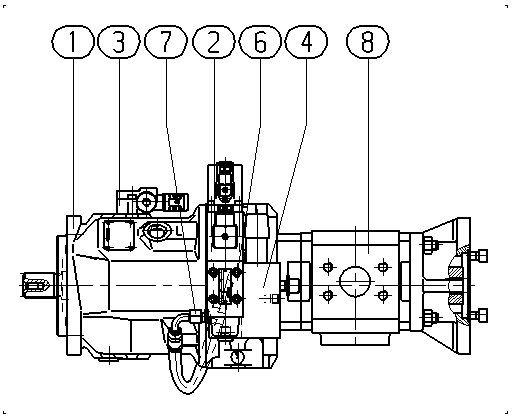

AA10VO71DFE1/31R-PSC12H00-SO640 — Drawing

Pos.	Number	Name	Qty
	R910979535	BASE UNIT Assembly parts list →L	1
	R910989733	VALVE	1
	R910947340	INDUCTIVE POS.TRANSDUCER Assembly parts list →L	1
	R910979787	INTERMEDIATE PLATE Assembly parts list →L	1
	R910979797	SOCKET HEAD CAP SCREW	4
	R910969208	HOSE ASSEMBLY Assembly parts list →L	1
	R910979688	GEAR PUMP	1
14	R902400582	FLANGE COVER	1
15	R902400590	FLANGE COVER	2
16	R902603190	SEAL SCREW	1
17	R909153338	SCREW PLUG	1
18	R902418324	FLANGE COVER Assembly parts list →L	1
20	R902400586	FLANGE COVER	1
61	R910109762	SOCKET HEAD CAP SCREW	2

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	71	71
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive	12

Parameters from the type code
