Unit · AXIAL-PISTON PUMP
A A10V O100 FHD /31L-PSC12K07 -SO655R910983165
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO100FHD/31L-PSC12K07-SO655, material number R910983165. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Special version no. 655.
- Number
- R910983165
- Type code
- A A10V O100 FHD /31L-PSC12K07 -SO655
- Group
- A10VO 100
- Edition
- 06/2020

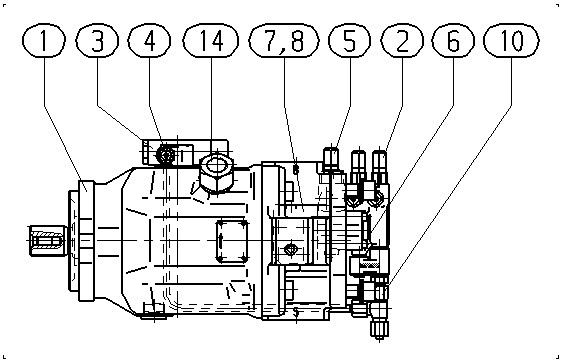

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910983099 | BASE UNIT Assembly parts list →L | 1 | ||
| R902532368 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533803 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 1 | ||
| R902455818 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R910929901 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910126446 | SOCKET HEAD CAP SCREW | 4 | ||
| R910983029 | PIPING Assembly parts list →L | 1 | ||
| R910910741 | ADAPTER Assembly parts list →L | 1 | ||
| 15 | R902434482 | SEAL | 1 | |
| 16 | R910764647 | SCREW PLUG | 2 | |
| 17 | R909154493 | SAFETY CAP | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
