Unit · AXIAL-PISTON PUMP

A A10VSO 71 DFE1/31R-PPA12M60R910984983

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO71DFE1/31R-PPA12M60, material number R910984983. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12).

Number
R910984983
Type code
A A10VSO 71 DFE1/31R-PPA12M60
Group
A10VSO 71
Edition
06/2020

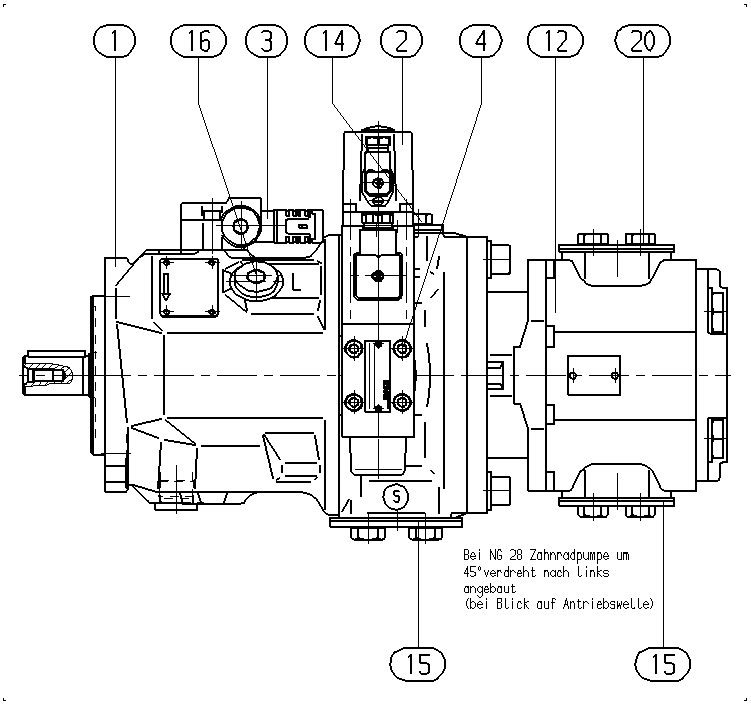

A A10VSO 71 DFE1/31R-PPA12M60 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910984879BASE UNIT Assembly parts list →L1
R902424554PROPORTIONAL DIRECTIONAL VALVE Assembly parts list →L1
R910947340INDUCTIVE POS.TRANSDUCER Assembly parts list →L1
R910110159SOCKET HEAD CAP SCREW4
R910901060GEAR PUMP1
R902400582FLANGE COVER1
R902400590FLANGE COVER2
R902602011SEAL SCREW1
R902400586FLANGE COVER1
61R910109762SOCKET HEAD CAP SCREW2

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)7171
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftParallel keyed shaft DIN 6885 permissible through-drive torqueP
Mounting flangeISO 3019-2 2-holeA
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
