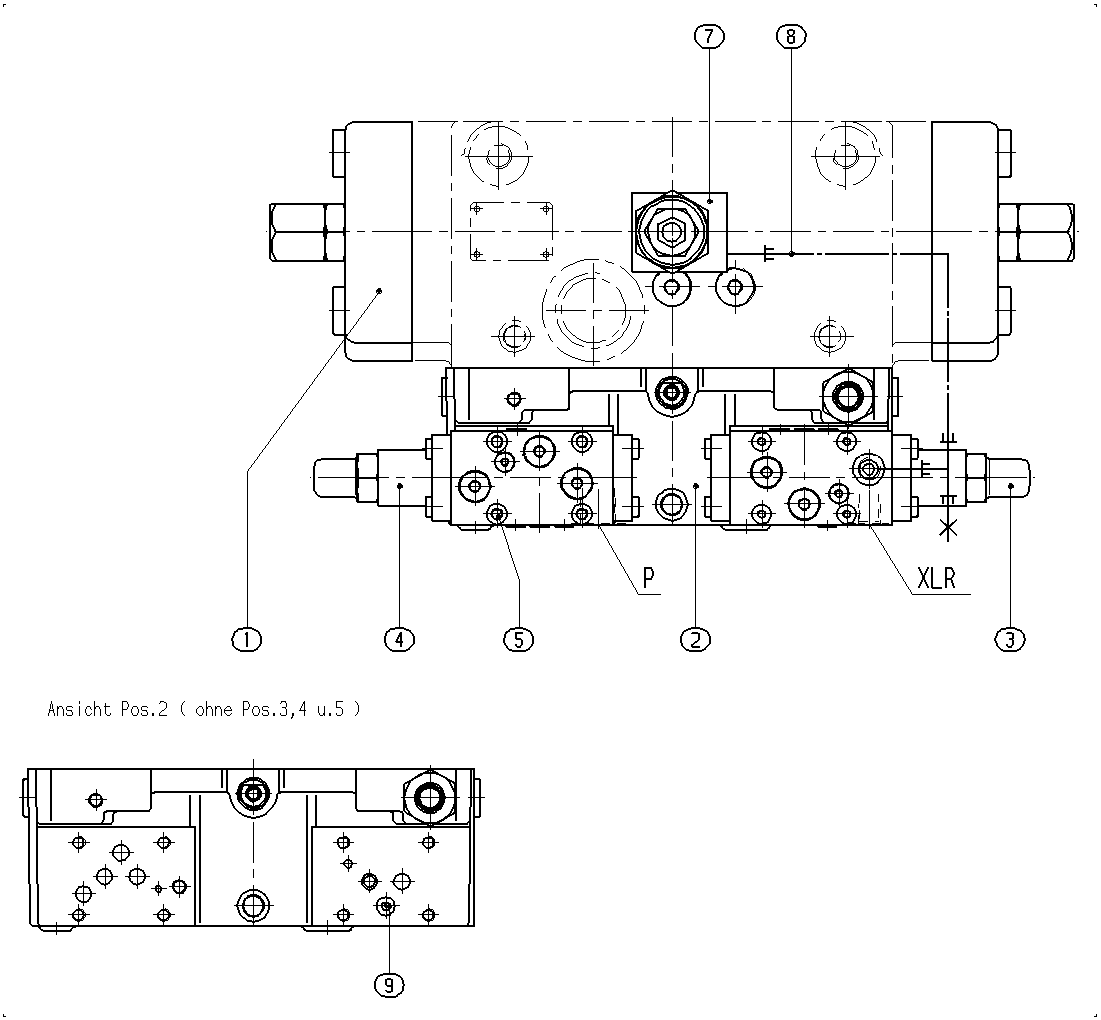

Unit · REGULATOR
R A4VS 500 LR3DN /30L -V -S1119R910985168
Control Bosch Rexroth series A4VS, type code RA4VS500LR3DN/30L-V-S1119, material number R910985168.
- Number
- R910985168
- Type code
- R A4VS 500 LR3DN /30L -V -S1119
- Group
- A4VS 500
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910985171 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910985170 | VALVE Assembly parts list →L | 1 | ||
| R910949999 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910928163 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910914670 | SOCKET HEAD CAP SCREW | 8 | ||
| R910948868 | PILOT VALVE Assembly parts list →L | 1 | ||
| R902572921 | PIPING Assembly parts list →L | 1 | ||
| R902408681 | NOZZLE | 1 |
