Unit · AXIAL-PISTON PUMP
A A10V O 71 DFEO/31R-PRC12K68 -SO514R910986526
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFEO/31R-PRC12K68-SO514, material number R910986526. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Drive shaft: similar to shaft "S" however for higher torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 514.
- Number
- R910986526
- Type code
- A A10V O 71 DFEO/31R-PRC12K68 -SO514
- Group
- A10VO 71
- Edition
- 06/2020

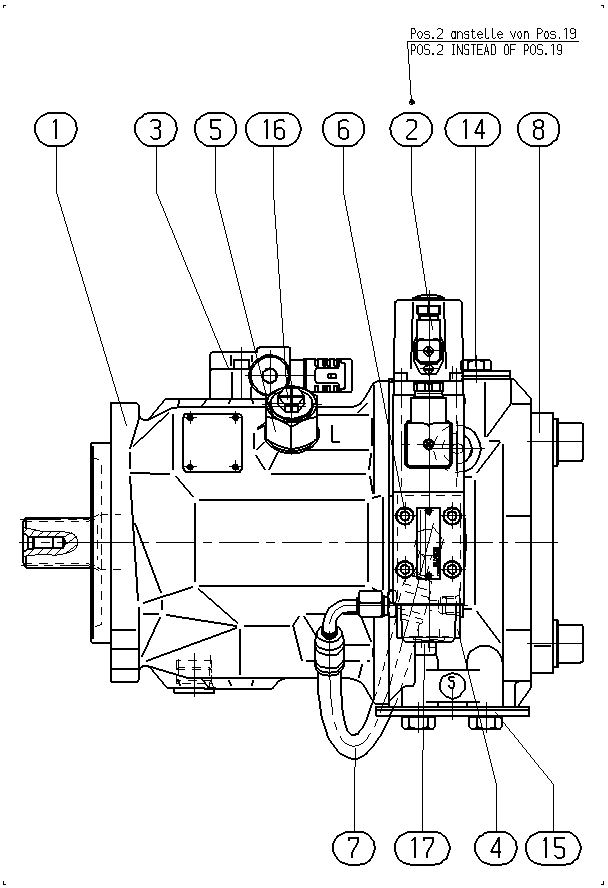

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910986470 | BASE UNIT Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902404047 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910934572 | ADAPTER Assembly parts list →L | 1 | ||
| R910969208 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R902469010 | SEALING COVER Assembly parts list →L | 1 | ||
| R902400582 | FLANGE COVER | 1 | ||
| R902400590 | FLANGE COVER | 1 | ||
| R902602011 | SEAL SCREW | 1 | ||
| R909831377 | GUARD PLUG | 1 | ||
| 19 | R902452844 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Drive shaft | Similar to shaft "S" however for higher torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
