Unit · AXIAL-PISTON PUMP

A A10V O 45 DRG /31L-VSC12K68 -SO633R910986667

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DRG/31L-VSC12K68-SO633, material number R910986667. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Hydraulic Remote controlled (DRG). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 633.

Number
R910986667
Type code
A A10V O 45 DRG /31L-VSC12K68 -SO633
Group
A10VO 45
Edition
06/2020

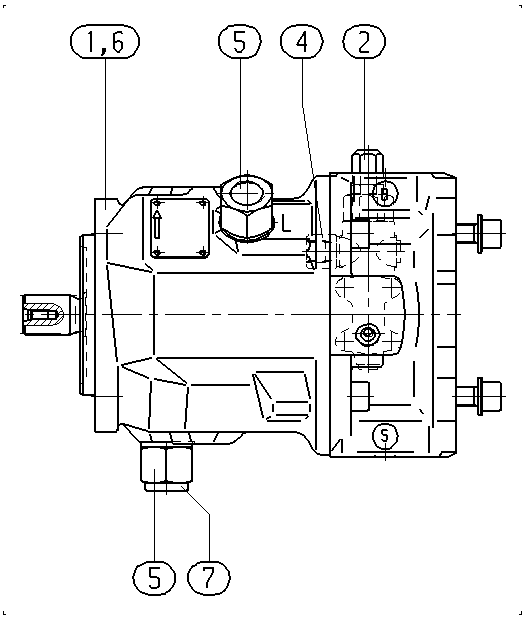

A A10V O 45 DRG /31L-VSC12K68 -SO633 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910986658BASE UNIT Assembly parts list →L1
R902456590CONTROL VALVE Assembly parts list →L1
R902409426ADAPTER Assembly parts list →L1
R910934572ADAPTER Assembly parts list →L2
R910920579SIDE MARKER RING1
R909156654SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
Control deviceWith pressure cut-off Hydraulic Remote controlledDRG
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft Counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
Through drive101-2 (B) 7/8 in 13T 16/32DPK68

Other versions 9
