Unit · BASE UNIT
GE A10VSO 18 DG /31R-PSA12N00R910986842
Base unit Bosch Rexroth series A10VSO, type code GEA10VSO18DG/31R-PSA12N00, material number R910986842. Nominal size: NG 18. Version: HFA, HFB, HFC hydraulic fluid (E). Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: two-point control, direct operated (DG). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00).
- Number
- R910986842
- Type code
- GE A10VSO 18 DG /31R-PSA12N00
- Group
- A10VSO 18
- Edition
- 06/2020

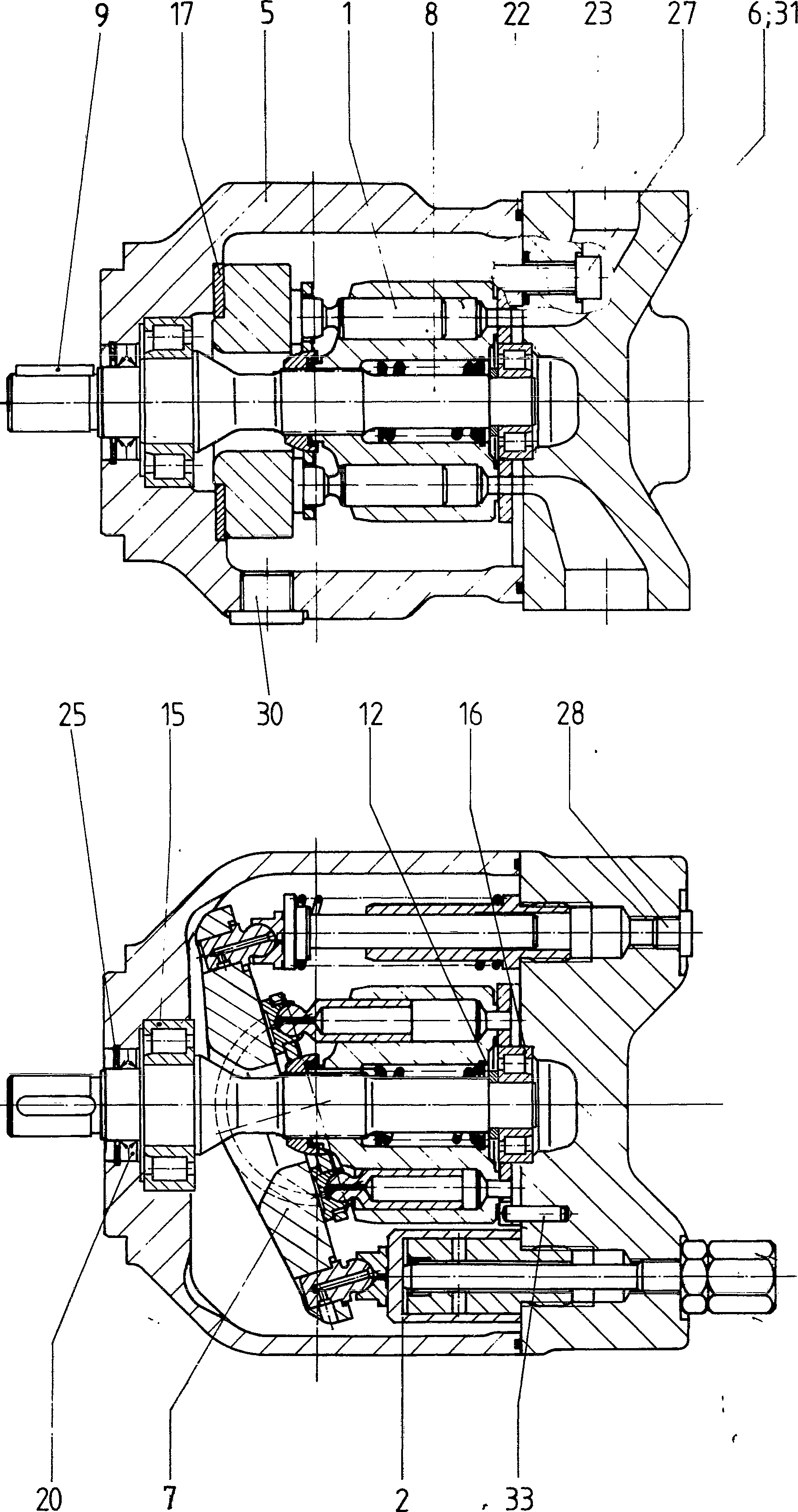

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910940435 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902538178 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910931545 | PUMP HOUSING | 1 | ||
| R910976709 | CONNECTION PLATE | 1 | ||
| R910960809 | SWASH PLATE | 1 | ||
| R902413741 | DRIVE SHAFT | 1 | ||
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| R910934965 | CYL. ROLLER BEARING | 1 | ||
| R910931556 | CYL. ROLLER BEARING | 1 | ||
| R910925266 | BEARING SHELL | 2 | ||
| R910931541 | SHAFT SEALING RING | 1 | ||
| R910926045 | O-RINGD | 1 | ||
| R913052101 | R-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153364 | SCREW PLUG | 1 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910277193 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | Two-point control, direct operated | DG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
