Unit · ADJUSTING PIECE
ADJUSTING PIECE A4VSG 250/355 HD/30R910986886
Adjusting piece Bosch Rexroth series A4VSG, type code ADJUSTINGPIECEA4VSG250/355HD/30, material number R910986886.
- Number
- R910986886
- Type code
- ADJUSTING PIECE A4VSG 250/355 HD/30
- Group
- A4VSG 250
- Edition
- 05/2020

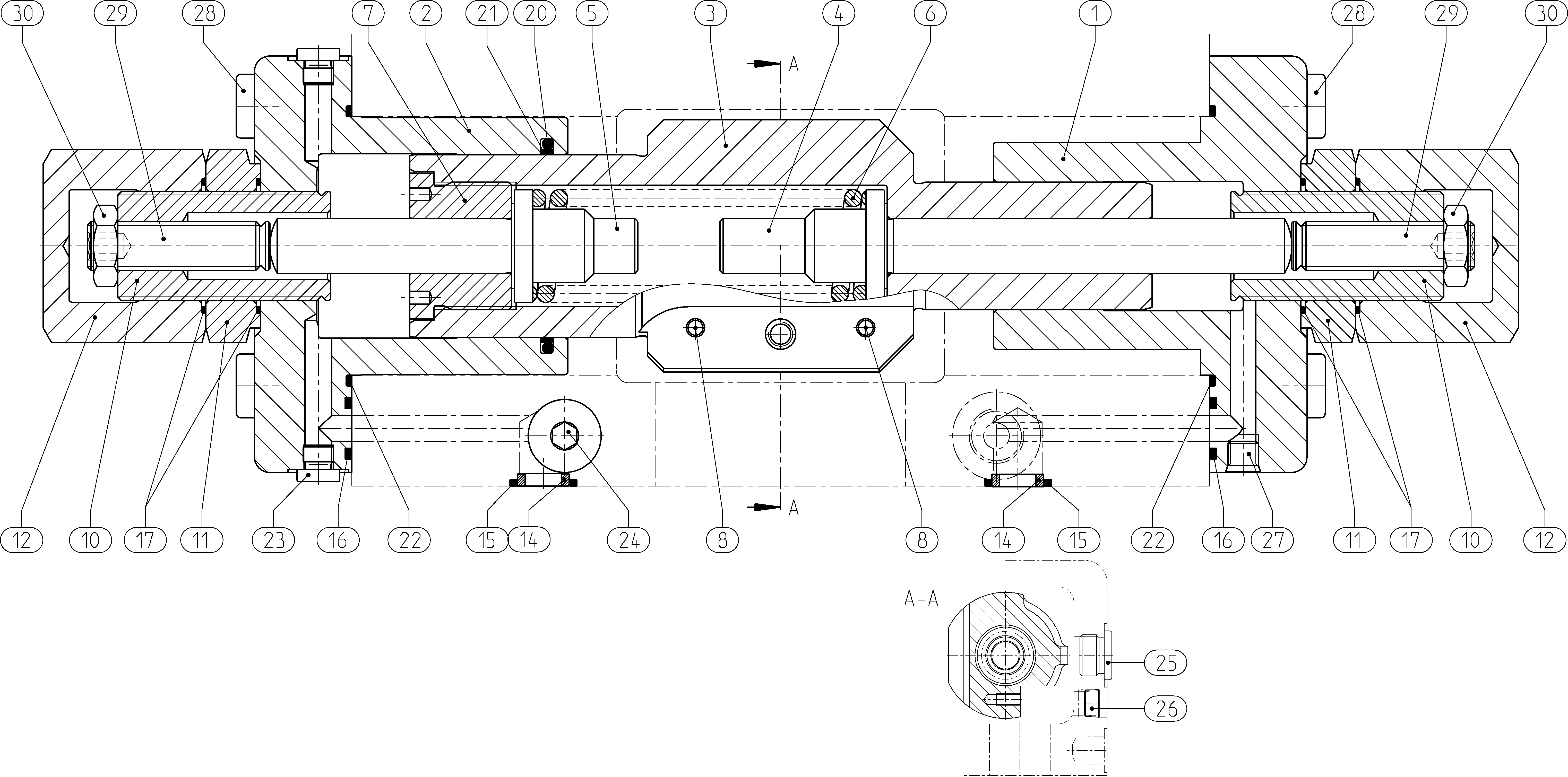

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910945727 | PISTON HOUSING | 1 | ||
| R910945721 | PISTON HOUSING | 1 | ||
| R902530758 | ADJUSTING PISTON | 1 | ||
| R902557759 | PRESSURE PISTON | 1 | ||
| R902557760 | PRESSURE PISTON | 1 | ||
| R910900077 | COMPRESSION SPRING | 1 | ||
| R902519845 | PISTON GUIDE | 1 | ||
| R902519601 | STOP SCREW | 2 | ||
| R910902827 | NUT | 2 | ||
| R910902828 | CAP NUT | 2 | ||
| R910978693 | SEAL RING | 2 | ||
| R910513482 | O-RINGD | 2 | ||
| R910923831 | R-RINGD | 2 | ||
| R910911739 | O-RINGD | 4 | ||
| R910977071 | O-RING | 1 | ||
| R902650982 | DUMMY | 1 | ||
| R902650323 | R-RINGD | 2 | ||
| R909153364 | SCREW PLUG | 4 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R910987526 | SCREW PLUG | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910604976 | SOCKET HEAD CAP SCREW | 8 | ||
| R902519537 | STUD BOLT | 2 | ||
| R910127116 | HEXAGON NUT | 2 |
