Unit · AXIAL-PISTON PUMP
AAA10VSO140DFLR/31R-PKD62K24-SO160R910987467
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO140DFLR/31R-PKD62K24-SO160, material number R910987467. Nominal size: NG 140. Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: 127-2 (C) 1 1/2 in 17T 12/24DP (K24). Special version no. 160.
- Number
- R910987467
- Type code
- AAA10VSO140DFLR/31R-PKD62K24-SO160
- Group
- A10VSO 140
- Edition
- 06/2020

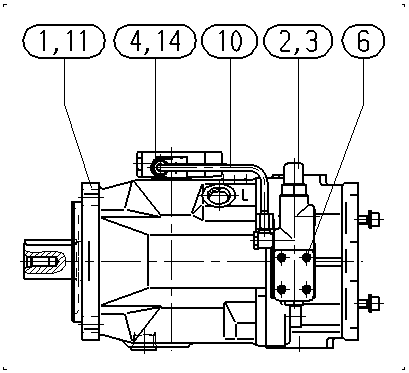

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910987427 | BASE UNIT Assembly parts list →L | 1 | ||
| R910920180 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910928582 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910964730 | PIPING Assembly parts list →L | 1 | ||
| R910926057 | POWER DIAGRAM | 1 | ||
| R909154478 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | 127-2 (C) 1 1/2 in 17T 12/24DP | K24 |
