Unit · BASE UNIT
G A10VEC 45 OV /52XX-VRFR910987507
Base unit Bosch Rexroth series A10VM, type code GA10VEC45OV/52XX-VRF, material number R910987507. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Mounting flange: special flange; 2 hole (F).
- Number
- R910987507
- Type code
- G A10VEC 45 OV /52XX-VRF
- Group
- A10VEC 45
- Edition
- 06/2020

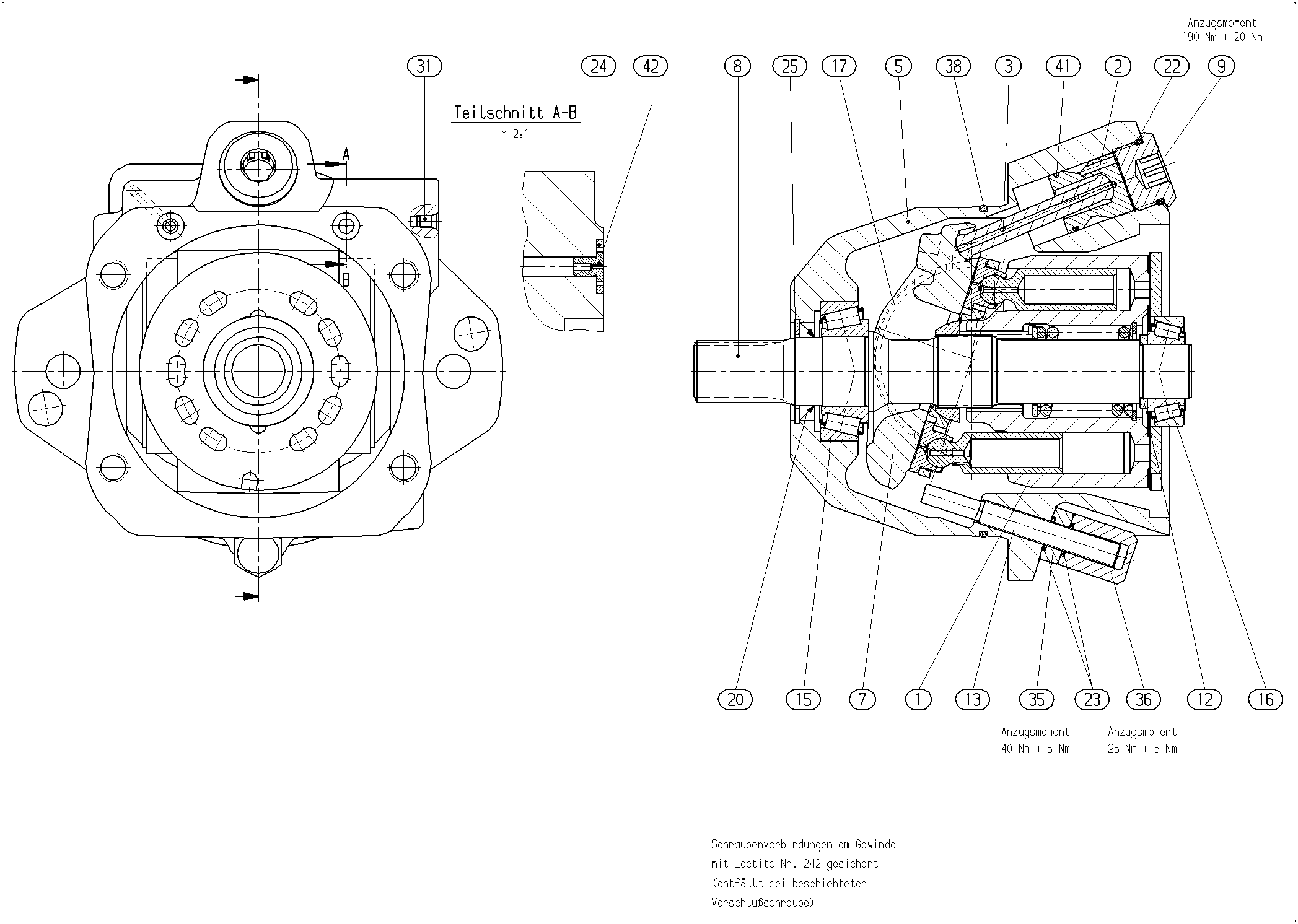

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435770 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910969289 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R910994094 | MOTOR HOUSING | 1 | ||
| R902443505 | SWASH PLATE | 1 | ||
| R902408467 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910943993 | STOP SCREW | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910933792 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R910804886 | O-RINGD | 2 | ||
| R910942133 | R-RING | 2 | ||
| R902403814 | RETAINING RING | 1 | ||
| 29 | R910987963 | STOP RING | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910928325 | O-RING | 1 | ||
| R909156962 | R-RING | 1 | ||
| R910987537 | NOZZLE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Size (NG) | 45 | 45 |
| Series | Series 5, index 2 | 52 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for high torque | R |
| Mounting flange | Special flange; 2 hole | F |
