Unit · CONTROL
V A7V O 250 OV /63R-P 02 -SO 29R910987562
Control Bosch Rexroth series A7VO, type code VA7VO250OV/63R-P02-SO29, material number R910987562. Nominal size: NG 250. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft (R). Drive shaft: parallel keyed shaft according to DIN 6885 (P). Port plate for working lines: SAE flange ports A and S at side (available for power controllers LA1S and LA1S5 only, metric (02). Standard / special version: special version (-S).
- Number
- R910987562
- Type code
- V A7V O 250 OV /63R-P 02 -SO 29
- Group
- A7VO 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

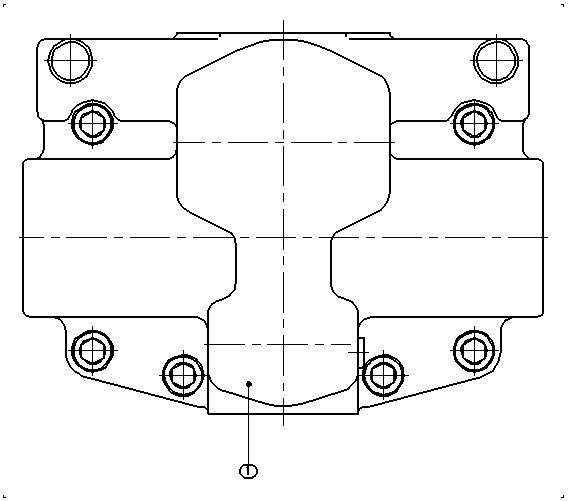

| R910987563 | ADJUSTING PIECE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 250 | 250 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft | R |
| Drive shaft | Parallel keyed shaft according to DIN 6885 | P |
| Port plate for working lines | SAE flange ports A and S at side (available for power controllers LA1S and LA1S5 only, metric | 02 |
| Standard / special version | Special version | -S |
