Unit · CONTROL
V A4VSG 250 EM/30R910988273
Control Bosch Rexroth series A4VSG, type code VA4VSG250EM/30, material number R910988273. Nominal size: NG 250. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G).
- Number
- R910988273
- Type code
- V A4VSG 250 EM/30
- Group
- A4VSG 250
- Edition
- 05/2020

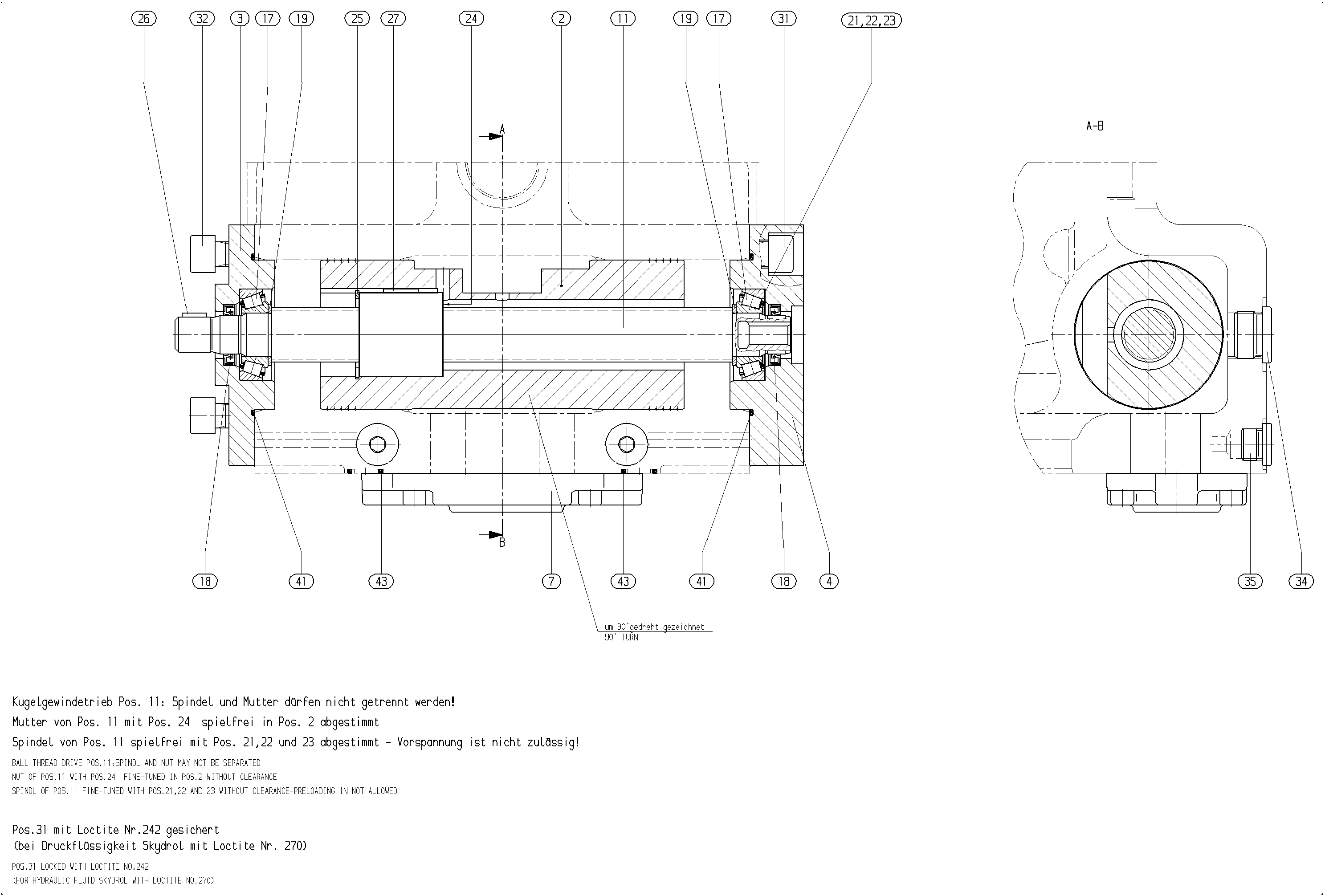

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902569794 | ADJUSTING PISTON | 1 | ||
| R910917542 | BEARING FLANGE | 1 | ||
| R910917507 | BEARING FLANGE | 1 | ||
| R910984191 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910946469 | BALL SCREW ASSEMBLY | 1 | ||
| R910101397 | TAPERED-ROLLER BEARING | 2 | ||
| R910900853 | SHAFT SEALING RINGD | 2 | ||
| R910105449 | SUPPORTING DISC | 2 | ||
| R910585335 | SHIM RING | 1 | ||
| R910635022 | SHIM RING | 1 | ||
| R910635014 | SHIM RING | 1 | ||
| R910126276 | SHIM RING | 2 | ||
| R910150541 | RETAINING RING | 1 | ||
| R910315788 | PARALLEL KEY | 1 | ||
| R910125482 | PARALLEL KEY | 1 | ||
| R910109916 | SOCKET HEAD CAP SCREW | 4 | ||
| R910977020 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R902650323 | R-RINGD | 2 | ||
| R910923831 | R-RINGD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 250 | 250 |
| Series | Series 3, index 0 | 30 |
