Unit · REGULATOR

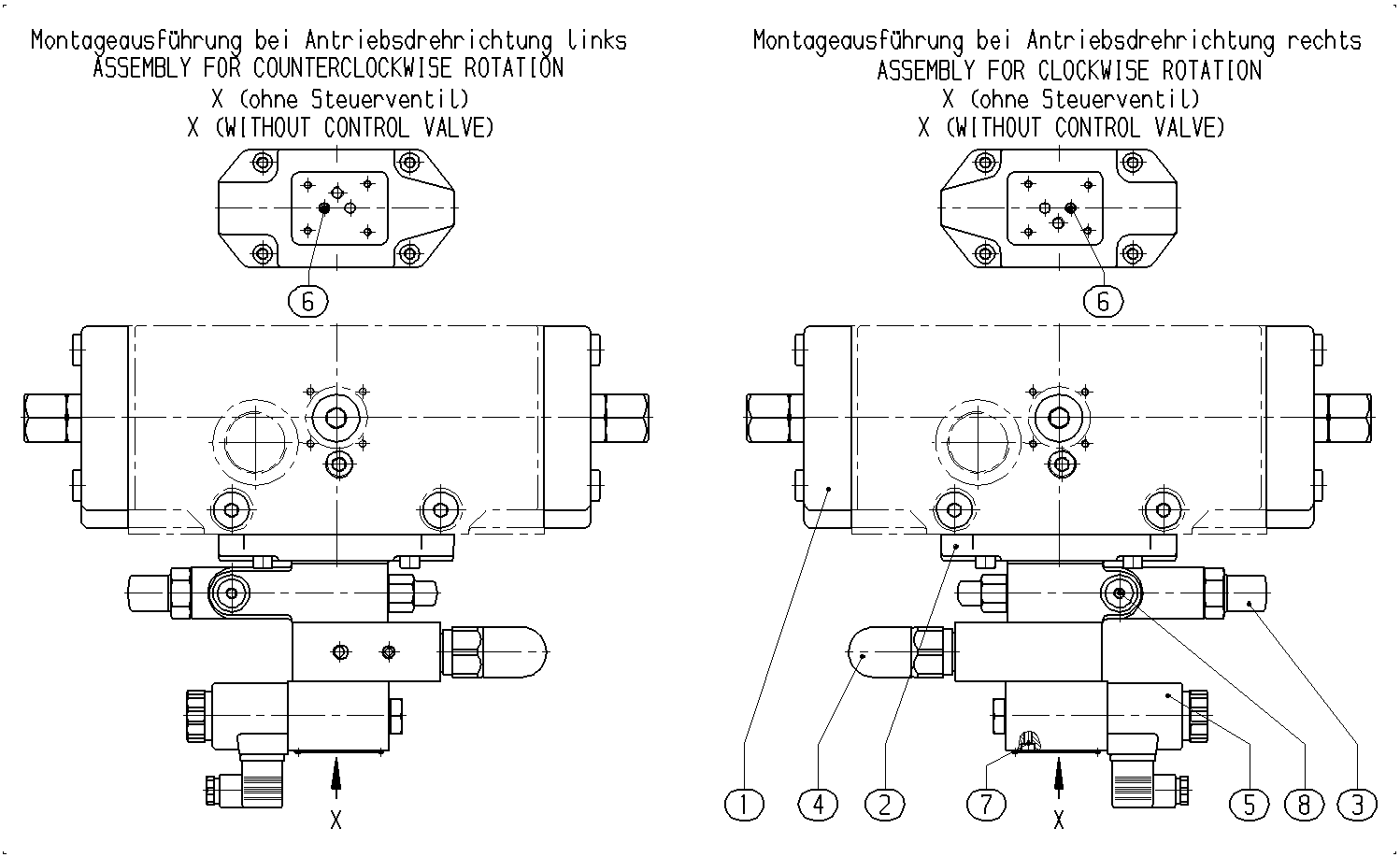

R A4VS 250/355 DRG /30 -SO580R910988652
Control Bosch Rexroth series A4VS, type code RA4VS250/355DRG/30-SO580, material number R910988652.
- Number
- R910988652
- Type code
- R A4VS 250/355 DRG /30 -SO580
- Group
- A4VS 250
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910995077 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910976948 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910987880 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910988651 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910996456 | DIRECTIONAL SPOOL VALVE Assembly parts list →L | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R910915346 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUG | 1 |
