Unit · AXIAL-PISTON PUMP
AEA10VSO100DFR/31R-VPA12G80-SO777R910988953
Axial piston pump Bosch Rexroth series A10VSO, type code AEA10VSO100DFR/31R-VPA12G80-SO777, material number R910988953. Nominal size: NG 100. Version: HFA, HFB, HFC hydraulic fluid (E). Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DFR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Special version no. 777.
- Number
- R910988953
- Type code
- AEA10VSO100DFR/31R-VPA12G80-SO777
- Group
- A10VSO 100
- Edition
- 06/2020

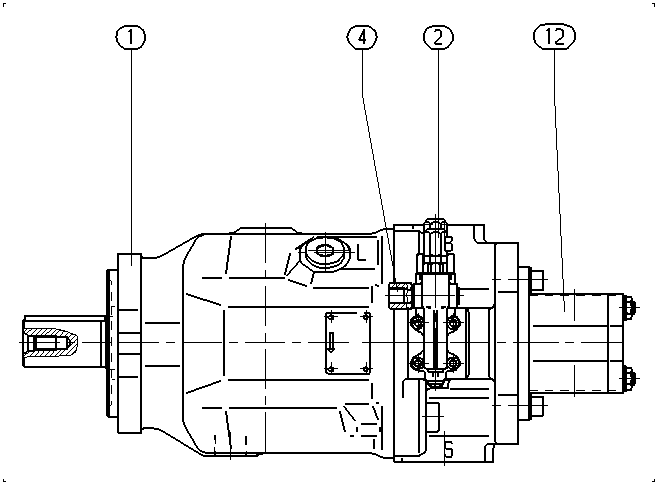

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910967371 | BASE UNIT Assembly parts list →L | 1 | ||
| R902456692 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902409426 | ADAPTER Assembly parts list →L | 1 | ||
| 0510725102 | HYDRAULIC GEAR PUMPL | 1 | ||
| 61 | R910109606 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | with flow controller X-T open hydraulic | DFR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
