Unit · INTERMEDIATE PLATE
INTERMEDIATE PLATE A4VS 125-355 HDP/T/U&R910989092
Axial piston pump Bosch Rexroth series A4VS, type code INTERMEDIATEPLATEA4VS125-355HDP/T/U&, material number R910989092.
- Number
- R910989092
- Type code
- INTERMEDIATE PLATE A4VS 125-355 HDP/T/U&
- Group
- A4VS 125355
- Edition
- 03/2020

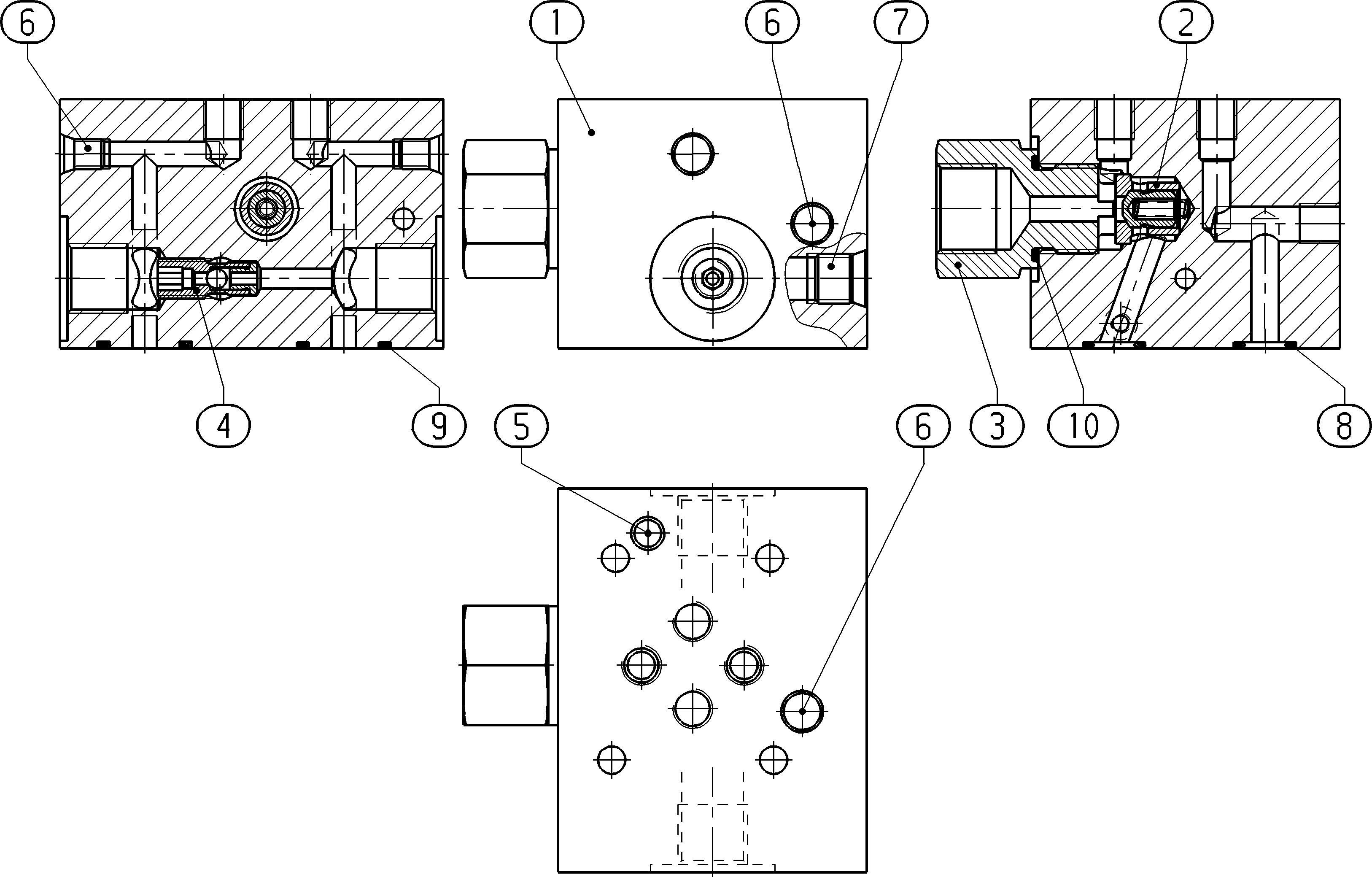

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910988646 | INTERMEDIATE PLATE | 1 | ||
| R910974659 | HY-CHECK VALVE | 1 | ||
| R910983767 | REDUCTION THREADED JOINT | 1 | ||
| R902424169 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R900078091 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910593168 | O-RING | 2 | ||
| R910930792 | O-RING | 2 | ||
| R910744603 | SEAL RING | 1 |
