Unit · AXIAL-PISTON PUMP
A A10VSO 71 DFEH/31R-PSA12G10R910989205
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO71DFEH/31R-PSA12G10, material number R910989205. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12).
- Number
- R910989205
- Type code
- A A10VSO 71 DFEH/31R-PSA12G10
- Group
- A10VSO 71
- Edition
- 06/2020

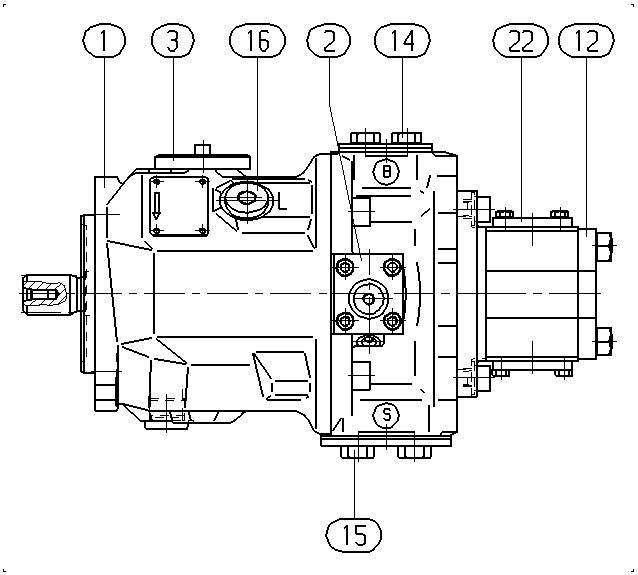

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910989178 | BASE UNIT Assembly parts list →L | 1 | ||
| R902449557 | FLANGE COVER | 2 | ||
| 0510225020 | HYDRAULIC GEAR PUMPL | 1 | ||
| R902400582 | FLANGE COVER | 1 | ||
| R902400590 | FLANGE COVER | 1 | ||
| R902602011 | SEAL SCREW | 1 | ||
| R902448945 | FLANGE COVER | 2 | ||
| 61 | R910109606 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
