Unit · AXIAL-PISTON PUMP

A A10V O 71 DFR1/31R-PSC62K07 -SO805R910989732

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFR1/31R-PSC62K07-SO805, material number R910989732. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Special version no. 805.

Number: R910989732
Type code: A A10V O 71 DFR1/31R-PSC62K07 -SO805
Group: A10VO 71
Edition: 06/2020

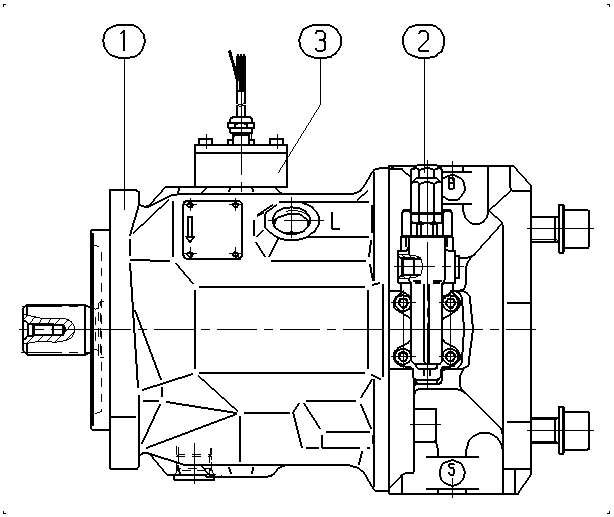

A A10V O 71 DFR1/31R-PSC62K07 -SO805 — Drawing

Pos.	Number	Name	Qty
	R910945344	BASE UNIT Assembly parts list →L	1
	R902450439	CONTROL VALVE Assembly parts list →L	1
	R900868651	ASSEMBLY KIT	1
17	R902650462	EQUIPMENT SOCKET	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	71	71
Control device	With flow controller X-T plugged, with flushing function	DFR1
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62
Through drive	127-2 (C) 1 1/4 in 14T 12/24DP	K07

Parameters from the type code
