Unit · BASE UNIT
G A10VEC 80 OV /52XX-VRFR910990021
Base unit Bosch Rexroth series A10VM, type code GA10VEC80OV/52XX-VRF, material number R910990021. Nominal size: NG 80. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Mounting flange: special flange; 2 hole (F).
- Number
- R910990021
- Type code
- G A10VEC 80 OV /52XX-VRF
- Group
- A10VEC 80
- Edition
- 06/2020

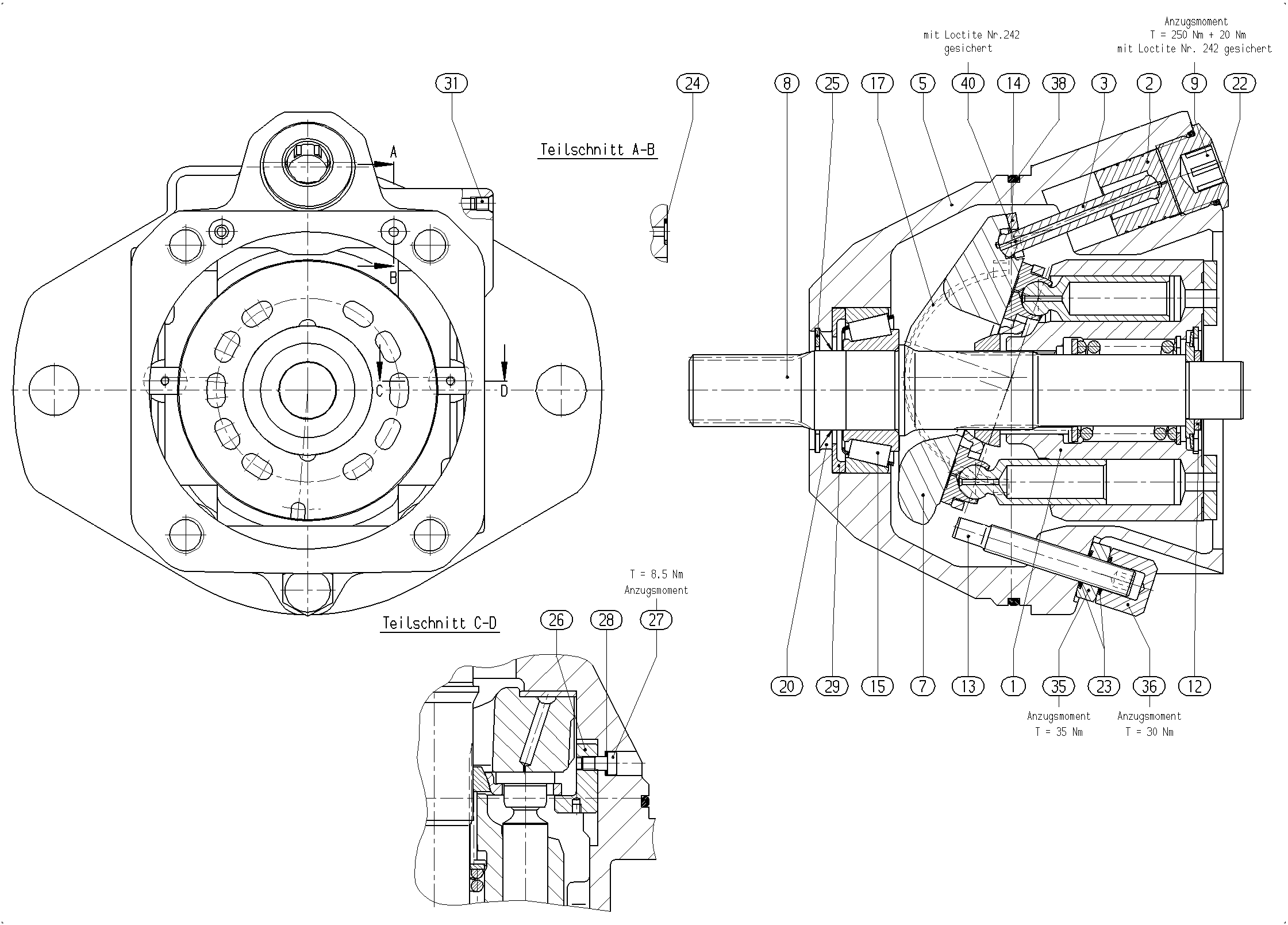

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910990022 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902417392 | ADJUSTING PISTON | 1 | ||
| R910989909 | PISTON ROD | 1 | ||
| R910989666 | MOTOR HOUSING | 1 | ||
| R902407999 | SWASH PLATE | 1 | ||
| R902412022 | DRIVE SHAFT | 1 | ||
| R902447587 | SCREW PLUG | 1 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910989457 | STOP SCREW | 1 | ||
| R910991223 | PLATE | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910989816 | BEARING SHELL | 2 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R910919314 | O-RINGD | 2 | ||
| R902400901 | R-RING | 2 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910989717 | GUSSET | 2 | ||
| R902455540 | FITTING SCREW | 2 | ||
| R910107891 | BONDED SEAL RING | 2 | ||
| R910987843 | STOP RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910903390 | NUT | 1 | ||
| R910903349 | CAP NUT | 1 | ||
| R910707503 | O-RING | 1 | ||
| R902400758 | COUNTERSUNK-HEAD SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Size (NG) | 80 | 80 |
| Series | Series 5, index 2 | 52 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for high torque | R |
| Mounting flange | Special flange; 2 hole | F |
