Unit · AXIAL-PISTON PUMP
A A10V O 45 DFEO/31R-PSC62K68R910990181
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFEO/31R-PSC62K68, material number R910990181. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68).
- Number
- R910990181
- Type code
- A A10V O 45 DFEO/31R-PSC62K68
- Group
- A10VO 45
- Edition
- 06/2020

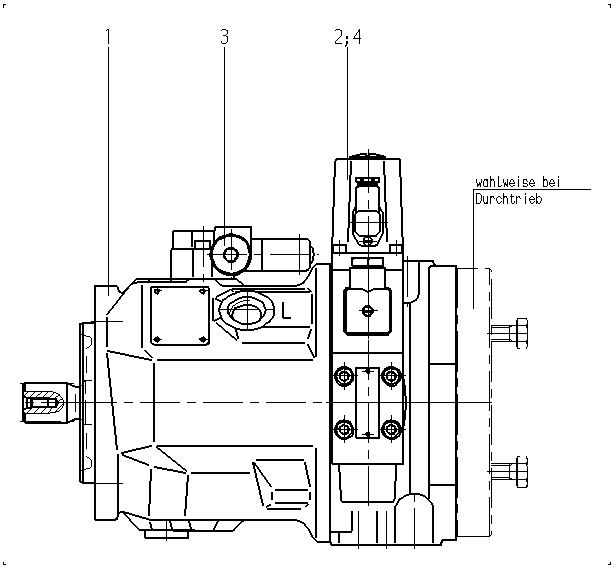

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910990149 | BASE UNIT Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| 14 | R902400579 | FLANGE COVER | 1 | |
| 15 | R902400587 | FLANGE COVER | 1 | |
| 16 | R902603190 | SEAL SCREW | 1 | |
| 19 | R902449557 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
