Unit · AXIAL-PISTON PUMP
A A10V O 28 DRG /31L-PSC62G60R910990242
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DRG/31L-PSC62G60, material number R910990242. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Hydraulic Remote controlled (DRG). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62).
- Number
- R910990242
- Type code
- A A10V O 28 DRG /31L-PSC62G60
- Group
- A10VO 28
- Edition
- 06/2020

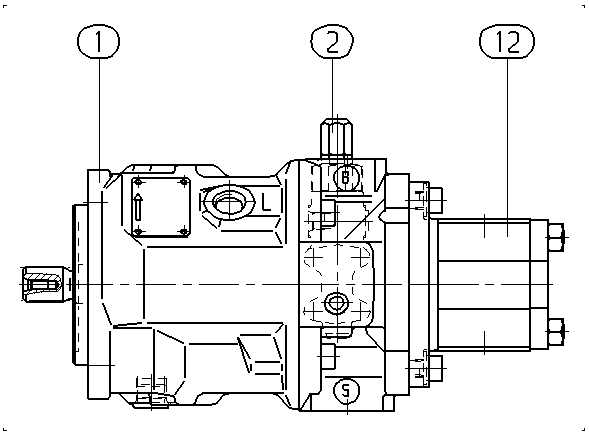

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910909940 | BASE UNIT Assembly parts list →L | 1 | ||
| R902490090 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 0510625378 | HYDRAULIC GEAR PUMPL | 1 | ||
| 61 | R910109606 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | With pressure cut-off Hydraulic Remote controlled | DRG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
