Unit · AXIAL-PISTON PUMP
AA10VO140DFR1/31R-VSC62K15-SO811R910990293
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DFR1/31R-VSC62K15-SO811, material number R910990293. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62). Through drive: 127-4 (C) 1 1/4 in 14T 12/24DP (K15). Special version no. 811.
- Number
- R910990293
- Type code
- AA10VO140DFR1/31R-VSC62K15-SO811
- Group
- A10VO 140
- Edition
- 06/2020

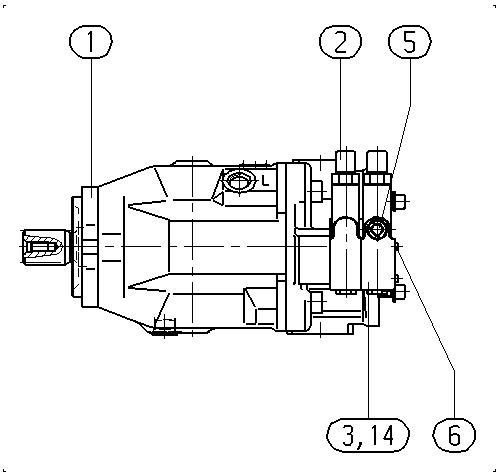

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910990069 | BASE UNIT Assembly parts list →L | 1 | ||
| R910924992 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910924990 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910984005 | ADAPTER Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | with flow controller X-T plugged with flushing function | DFR1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite | 62 |
| Through drive | 127-4 (C) 1 1/4 in 14T 12/24DP | K15 |
