Unit · AXIAL-PISTON PUMP
AAA10VSO140DFEH/31R-PKD62K08R910990908
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO140DFEH/31R-PKD62K08, material number R910990908. Nominal size: NG 140. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62).
- Number
- R910990908
- Type code
- AAA10VSO140DFEH/31R-PKD62K08
- Group
- A10VSO 140
- Edition
- 06/2020

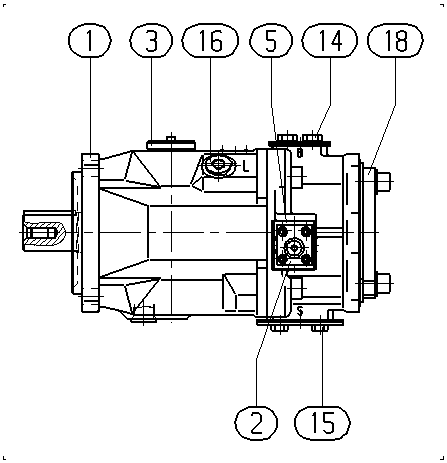

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910990759 | BASE UNIT Assembly parts list →L | 1 | ||
| R902449557 | FLANGE COVER | 2 | ||
| R902400585 | FLANGE COVER | 1 | ||
| R902400595 | FLANGE COVER | 1 | ||
| R902603191 | SEAL SCREW | 1 | ||
| R902602979 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
