Unit · AXIAL-PISTON PUMP

A AA10VSO 71 FE1 /31R-PKC62K04 -SO479R910990997

Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO71FE1/31R-PKC62K04-SO479, material number R910990997. Nominal size: NG 71. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04). Special version no. 479.

Number
R910990997
Type code
A AA10VSO 71 FE1 /31R-PKC62K04 -SO479
Group
A10VSO 71
Edition
06/2020

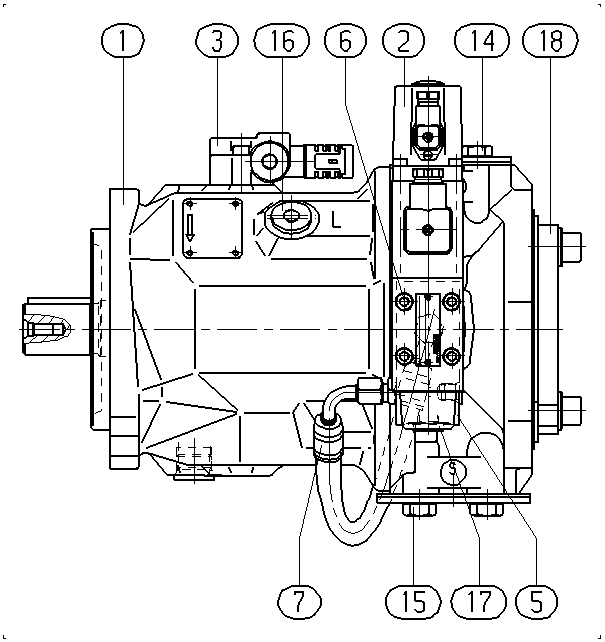

A AA10VSO 71 FE1 /31R-PKC62K04 -SO479 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910990976BASE UNIT Assembly parts list →L1
R902424554PROPORTIONAL DIRECTIONAL VALVE Assembly parts list →L1
R910947340INDUCTIVE POS.TRANSDUCER Assembly parts list →L1
R902404047INTERMEDIATE PLATE Assembly parts list →L1
R910914728SOCKET HEAD CAP SCREW4
R910969208HOSE ASSEMBLY Assembly parts list →L1
R902534067FLANGE COVER1
R902400591FLANGE COVER1
R902603190SEAL SCREW1
R909831377GUARD PLUG1
R902602977FLANGE COVER1

Parameters from the type code

ItemMeaningCode
Operating modePump, open circuitO
Size (NG)7171
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftParallel keyed shaft permissible through-drive torque ISO 3019-1K
Mounting flangeISO 3019-1 2-holeC
Working portSAE flange ports according to ISO 6162, UNC fastening thread laterally opposite62
Through drive101-2 (B) 1 in 15T 16/32DPK04
