Unit · ROTARY GROUP
TWA7VLO250/63R-VPWR910991237

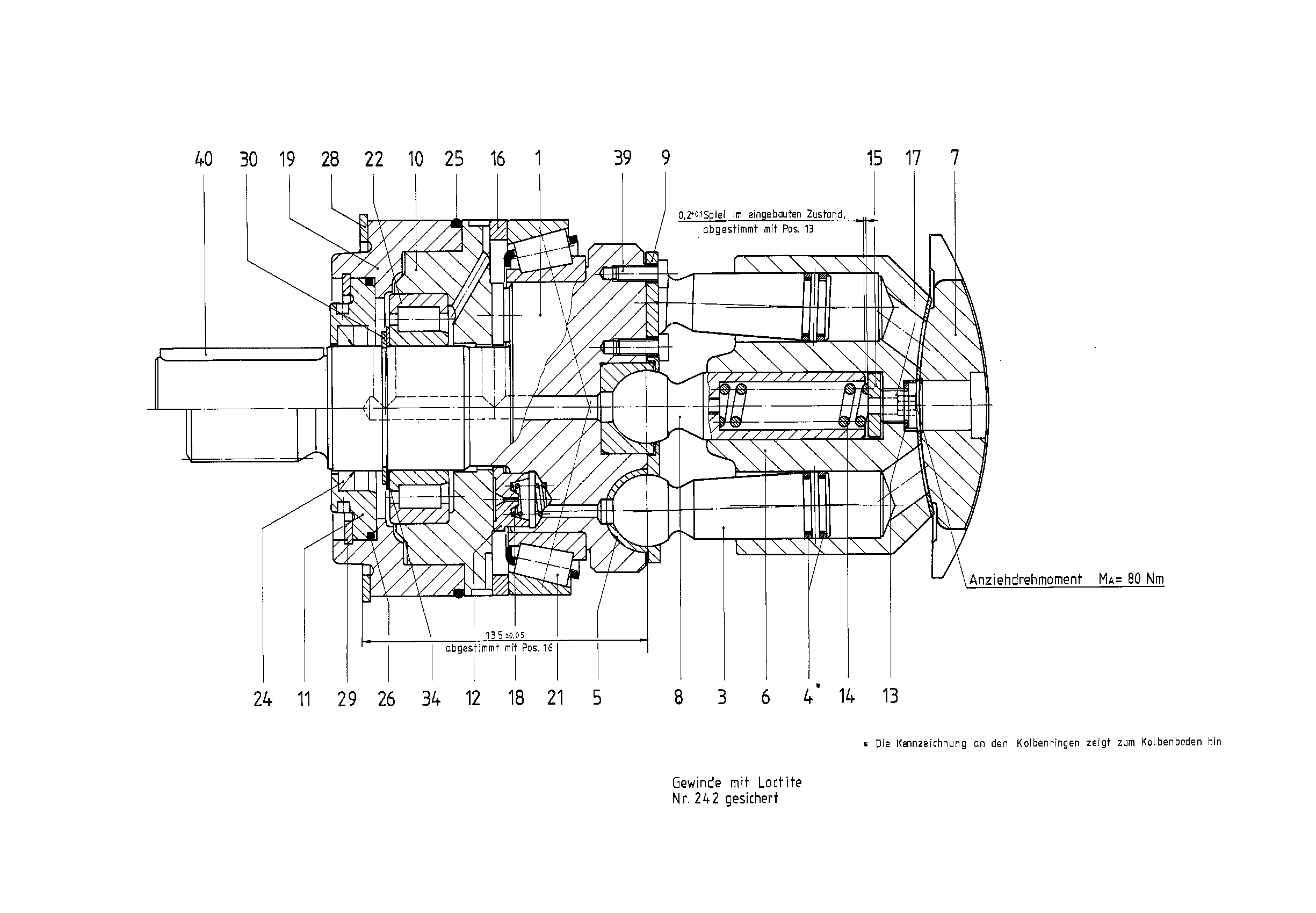

Rotary group Bosch Rexroth series A7VLO, type code TWA7VLO250/63R-VPW, material number R910991237.
- Number
- R910991237
- Type code
- TWA7VLO250/63R-VPW
- Group
- A7VLO 250
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902570588 | DRIVE FLANGE | 1 | |
| R902441089 | PISTON | 7 | ||
| R902493259 | CYLINDER | 1 | ||
| R910998161 | CONTROL LENS Assembly parts list →L | 1 | ||
| R902519719 | THRUST JOURNAL | 1 | ||
| R902566822 | RETAINING PLATE | 1 | ||
| 10 | R902410825 | BEARING RING | 1 | |
| R902412282 | SEALING FLANGE | 1 | ||
| R910906308 | PAD | 7 | ||
| R910969915 | SHIM RING | 1 | ||
| R910900002 | COMPRESSION SPRING | 1 | ||
| R910900003 | WASHER | 1 | ||
| 16 | R902416435 | TUNING KIT | 1 | |
| R910969893 | SPACER SCREW | 1 | ||
| 18 | R910717207 | COMPRESSION SPRING | 7 | |
| R910904785 | BEARING RING | 1 | ||
| 21 | R913045638 | TAPERED-ROLLER BEARING | 1 | |
| 22 | R910717223 | CYL. ROLLER BEARING | 1 | |
| R910381209 | SHAFT SEALING RINGD | 1 | ||
| 25 | R910113689 | O-RINGD | 1 | |
| 26 | R910928968 | O-RINGD | 1 | |
| 28 | R910106151 | RETAINING RING | 1 | |
| 29 | R910797448 | RETAINING RING | 1 | |
| R910082953 | RETAINING RING | 1 | ||
| R910906310 | SHIM RING | 1 | ||
| R902602715 | PAN-HEAD SCREW | 14 | ||
| R910244848 | PARALLEL KEY | 1 |
