Unit · AXIAL-PISTON MOTOR
AL A6V M 250 FR1 /63L1-VPB150 B-SO118R910991418
Axial piston motor Bosch Rexroth series A6VM, type code ALA6VM250FR1/63L1-VPB150B-SO118, material number R910991418. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at side, opposite + at rear 15 (150). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S). Special version no. 118.
- Number
- R910991418
- Type code
- AL A6V M 250 FR1 /63L1-VPB150 B-SO118
- Group
- A6VM 250
- Edition
- 06/2020

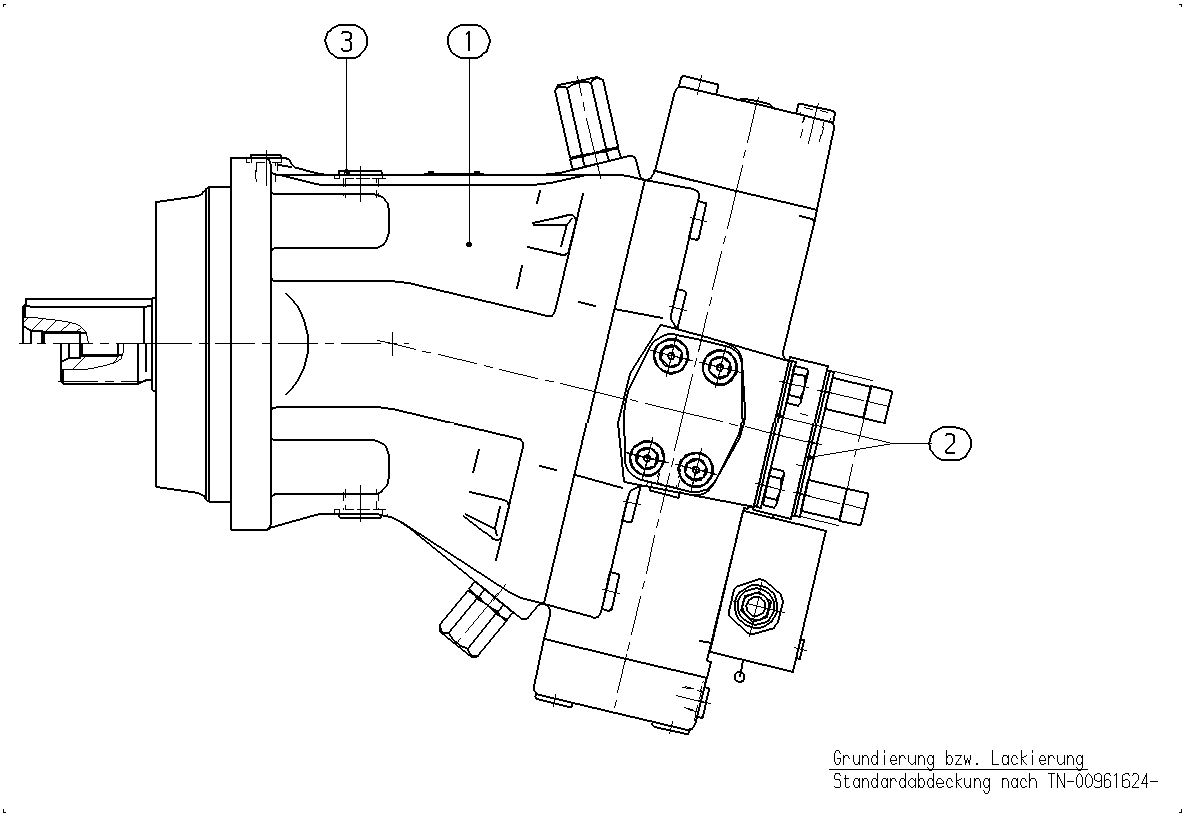

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910991421 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R909151694 | SCREW PLUG | 1 | ||
| 10 | R902460826 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Series | Series 6, index 3 | 63 |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at side, opposite + at rear 15 | 150 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
