Unit · AXIAL-PISTON PUMP
AL A10VSO 18 DR /31R-PUC12K01R910991720
Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO18DR/31R-PUC12K01, material number R910991720. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 4100 psi (280 bar), maximum pressure 5100 psi (350 bar) (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft ISO 3019-1 reduced diameter, not for through drive (U). Mounting flange: ISO 3019-1 2-hole (C). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01).
- Number
- R910991720
- Type code
- AL A10VSO 18 DR /31R-PUC12K01
- Group
- A10VSO 18
- Edition
- 06/2020

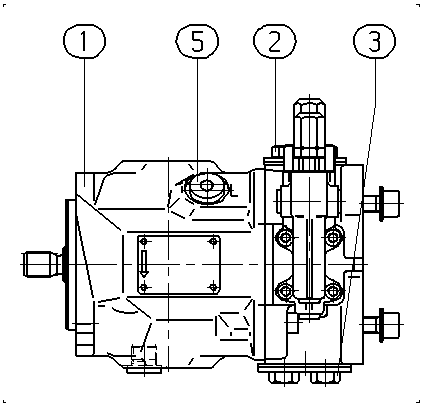

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910975084 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400574 | FLANGE COVER | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902602009 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 4100 psi (280 bar), maximum pressure 5100 psi (350 bar) | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft ISO 3019-1 reduced diameter, not for through drive | U |
| Mounting flange | ISO 3019-1 2-hole | C |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
