Unit · REGULATOR
RA4VS250/355DR/30-SO103R910992132
Control Bosch Rexroth series A4VS, type code RA4VS250/355DR/30-SO103, material number R910992132.
- Number
- R910992132
- Type code
- RA4VS250/355DR/30-SO103
- Group
- A4VS 250
- Edition
- 07/2020

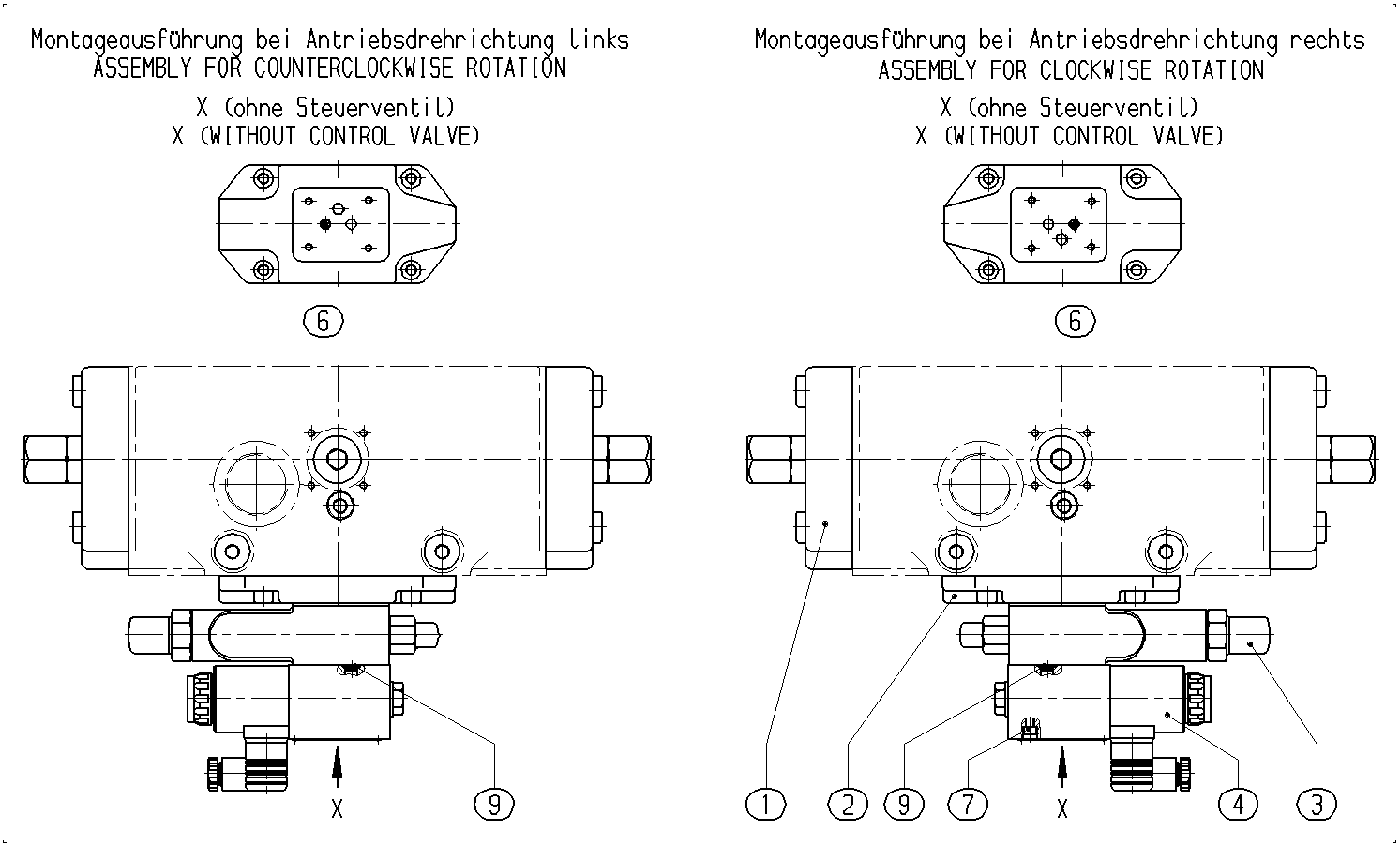

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910995077 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910976948 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910990478 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910983924 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R910836761 | NOZZLE | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910975329 | CHOKE | 1 |
