Unit · ROTARY GROUP
TWA4VSG500K/30L-VPHK00R910992760
Rotary group Bosch Rexroth series A4VSG, type code TWA4VSG500K/30L-VPHK00, material number R910992760. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Valves: without valve block (0).
- Number
- R910992760
- Type code
- TWA4VSG500K/30L-VPHK00
- Group
- A4VSG 500
- Edition
- 07/2020

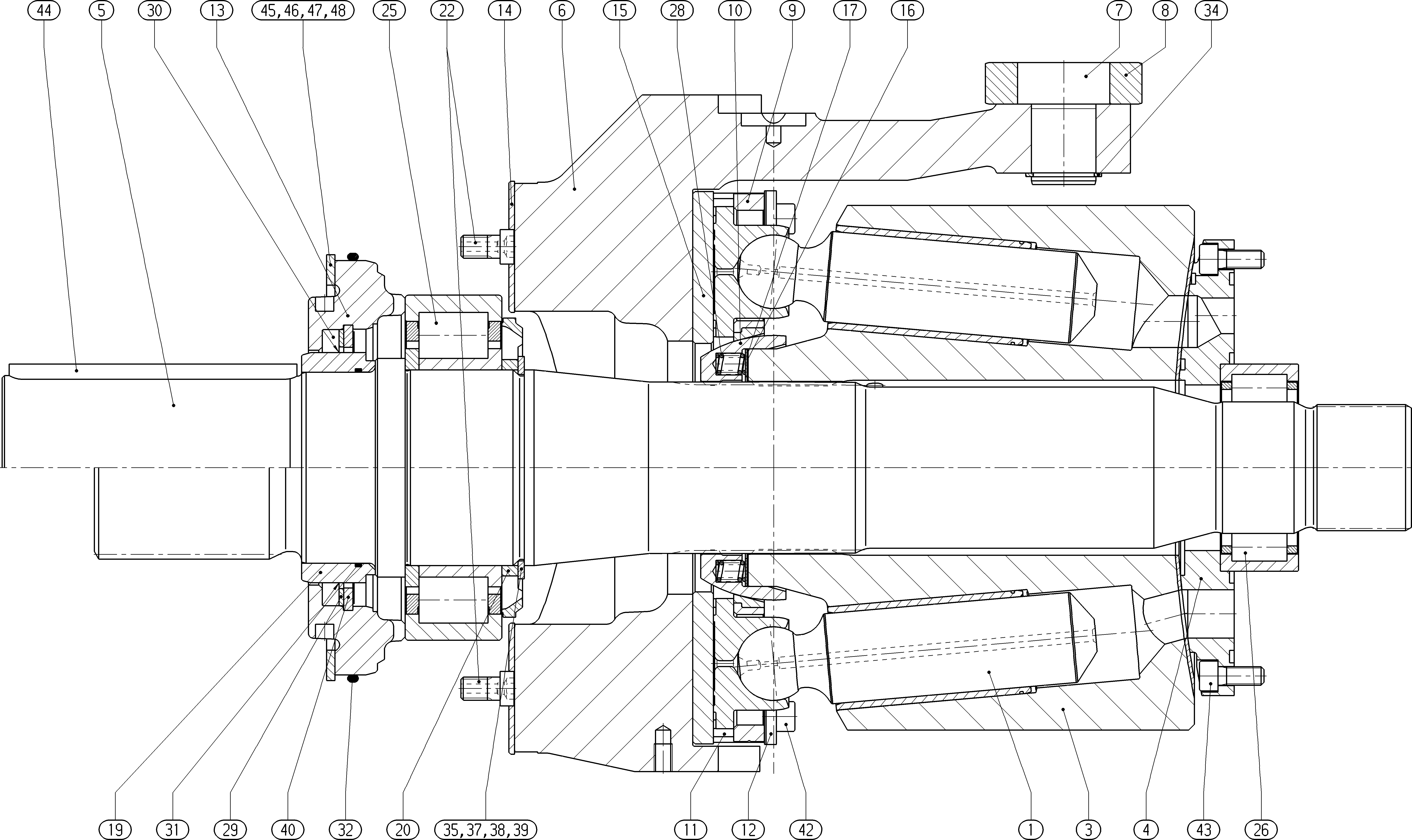

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910974934 | PISTON PAD | 9 | ||
| R902425603 | CYLINDER | 1 | ||
| R910987897 | DISTRIBUTOR PLATE | 1 | ||
| R902449426 | DRIVE SHAFT | 1 | ||
| R910910908 | SWASH PLATE | 1 | ||
| R910910927 | DRIVER PIVOT | 1 | ||
| R910910926 | SLIDER | 1 | ||
| R910971076 | RETAINING PLATE | 1 | ||
| R910975577 | RETAINING BALL | 1 | ||
| R910965066 | SPACER SEGMENT | 4 | ||
| R902570176 | SEGMENT | 4 | ||
| R910992070 | SEALING FLANGE | 1 | ||
| R910946530 | BEARING SHELL | 2 | ||
| R902439281 | SLIDING DISC | 1 | ||
| R910973964 | SHIM RING | 2 | ||
| R910973965 | SHIM RING | 2 | ||
| R910991528 | SEAL BUSHING | 1 | ||
| R910978401 | FEED WHEEL | 1 | ||
| R910969259 | SETTING SCREW | 2 | ||
| R910978421 | CYL. ROLLER BEARING | 1 | ||
| R910978422 | CYL. ROLLER BEARING | 1 | ||
| R910964900 | COMPRESSION SPRING | 20 | ||
| R902402165 | SHIM RING | 1 | ||
| R910983303 | SHAFT SEALING RING | 1 | ||
| R910470503 | O-RING | 1 | ||
| R910707503 | O-RING | 1 | ||
| R910187968 | RETAINING RING | 1 | ||
| R910188034 | RETAINING RING | 1 | ||
| R910979461 | RETAINING RING | 1 | ||
| R910979462 | RETAINING RING | 1 | ||
| R910986797 | RETAINING RING | 1 | ||
| R910574406 | RETAINING RING | 1 | ||
| R902650870 | SOCKET HEAD CAP SCREW | 8 | ||
| R910109452 | SOCKET HEAD CAP SCREW | 6 | ||
| R910910939 | PARALLEL KEY | 1 | ||
| R910992071 | RETAINING RING | 1 | ||
| R910992072 | RETAINING RING | 1 | ||
| R910992073 | RETAINING RING | 1 | ||
| R910992074 | RETAINING RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 500 | 500 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Valves | Without valve block | 0 |
