Unit · AXIAL-PISTON PUMP

AA10VO74DFLR/31R-PWC62N00-SO128R910992955

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO74DFLR/31R-PWC62N00-SO128, material number R910992955. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Drive shaft: same as "U", higher torque; limited suitability for through drive; for mounting option (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00). Special version no. 128.

Number: R910992955
Type code: AA10VO74DFLR/31R-PWC62N00-SO128
Group: A10VO 74
Edition: 06/2020

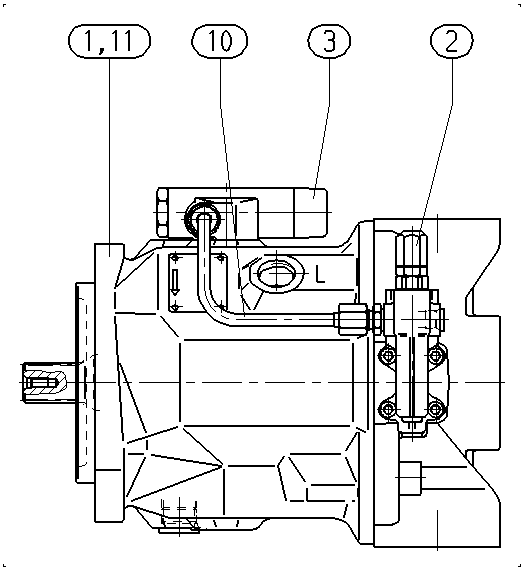

AA10VO74DFLR/31R-PWC62N00-SO128 — Drawing

Pos.	Number	Name	Qty
	R910988160	BASE UNIT Assembly parts list →L	1
	R902533361	CONTROL VALVE Assembly parts list →L	1
	R902533217	CONTROL VALVE Assembly parts list →L	1
	R910963807	PIPING Assembly parts list →L	1
	R910992810	POWER DIAGRAM	1
14	R909154478	SCREW PLUG	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	74	74
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Drive shaft	Same as "U", higher torque; limited suitability for through drive; for mounting option	W
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62
Through drive	Without through drive	N00

Parameters from the type code

Other versions 2
