Unit · AXIAL-PISTON PUMP
A A10V O 45 DFSR/31R-VSC62G70 -SO596R910993165
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFSR/31R-VSC62G70-SO596, material number R910993165. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Special version no. 596.
- Number
- R910993165
- Type code
- A A10V O 45 DFSR/31R-VSC62G70 -SO596
- Group
- A10VO 45
- Edition
- 06/2020

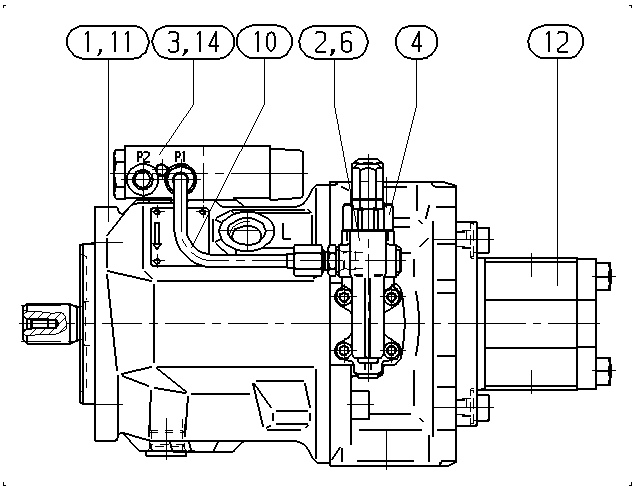

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910924489 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533312 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533227 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902455818 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R910963788 | PIPING Assembly parts list →L | 1 | ||
| R910933615 | POWER DIAGRAM | 1 | ||
| 0510625072 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| 61 | R910109606 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
