Unit · AXIAL-PISTON PUMP
A A10V O 71 DFEO/31L-PSC12K04R910993289
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFEO/31L-PSC12K04, material number R910993289. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04).
- Number
- R910993289
- Type code
- A A10V O 71 DFEO/31L-PSC12K04
- Group
- A10VO 71
- Edition
- 06/2020

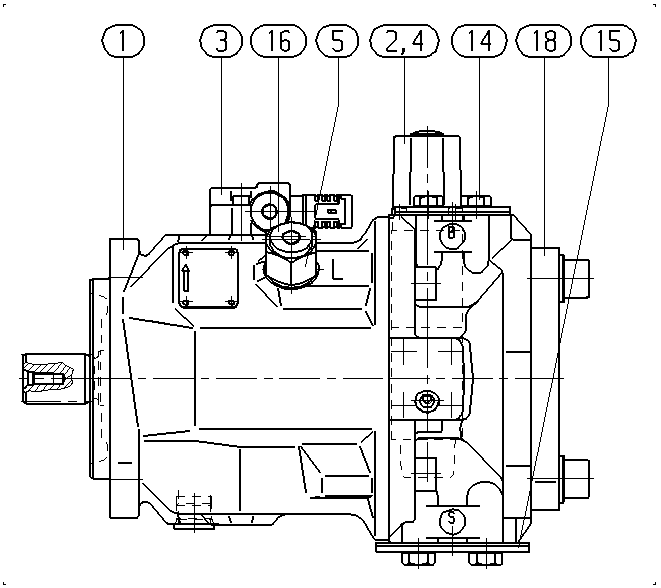

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910986560 | BASE UNIT Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R910934572 | ADAPTER Assembly parts list →L | 1 | ||
| R902400582 | FLANGE COVER | 1 | ||
| R902400590 | FLANGE COVER | 1 | ||
| R902602011 | SEAL SCREW | 1 | ||
| R902602979 | FLANGE COVER | 1 | ||
| 19 | R902449557 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | 101-2 (B) 1 in 15T 16/32DP | K04 |
