Unit · AXIAL-PISTON PUMP
AL A10V O100 FED /31L-VUC11N00 -SO877R910993553
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO100FED/31L-VUC11N00-SO877, material number R910993553. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter; limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 877.
- Number
- R910993553
- Type code
- AL A10V O100 FED /31L-VUC11N00 -SO877
- Group
- A10VO 100
- Edition
- 06/2020

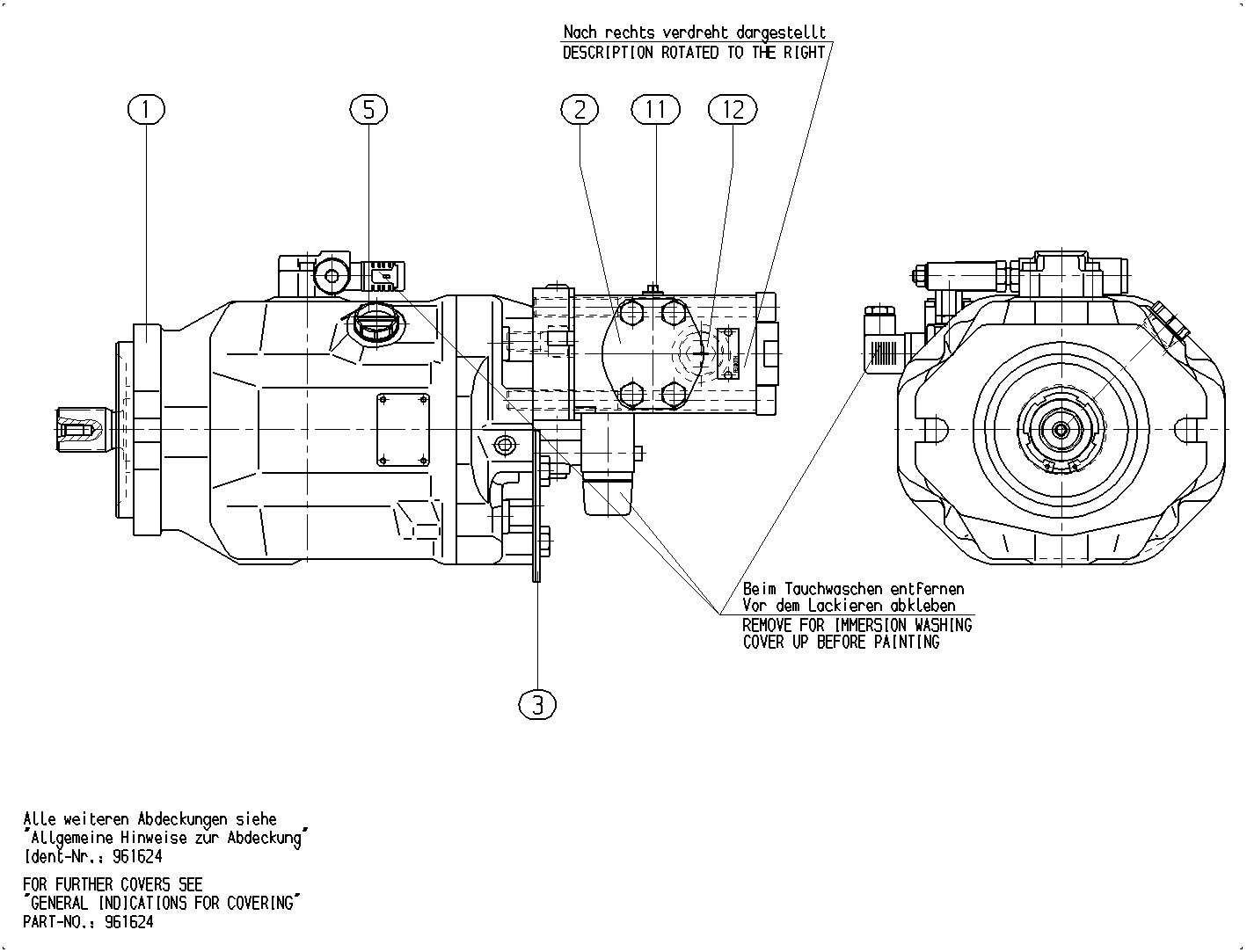

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910993528 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R902603191 | SEAL SCREW | 1 | ||
| R902602203 | SEAL SCREW | 1 | ||
| R909831380 | GUARD PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Reduced diameter; limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
