Unit · AXIAL-PISTON PUMP
A A10V O140 DFEH/31R-PSD62K24 -SO487R910993626
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DFEH/31R-PSD62K24-SO487, material number R910993626. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 127-2 (C) 1 1/2 in 17T 12/24DP (K24). Special version no. 487.
- Number
- R910993626
- Type code
- A A10V O140 DFEH/31R-PSD62K24 -SO487
- Group
- A10VO 140
- Edition
- 06/2020

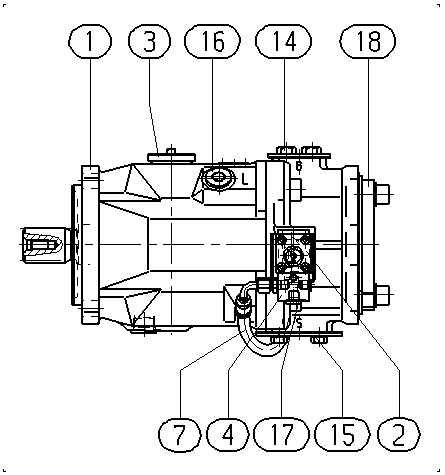

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910993510 | BASE UNIT Assembly parts list →L | 1 | ||
| R902452844 | FLANGE COVER | 1 | ||
| R902449557 | FLANGE COVER | 1 | ||
| R902404047 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910969085 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R902400585 | FLANGE COVER | 1 | ||
| R902400595 | FLANGE COVER | 1 | ||
| R902603191 | SEAL SCREW | 1 | ||
| R909831377 | GUARD PLUG | 1 | ||
| R902602979 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 127-2 (C) 1 1/2 in 17T 12/24DP | K24 |
