Unit · AXIAL-PISTON PUMP
AA10VO140FE1D/31L-PSD12N00-SO764R910993765
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140FE1D/31L-PSD12N00-SO764, material number R910993765. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 764.
- Number
- R910993765
- Type code
- AA10VO140FE1D/31L-PSD12N00-SO764
- Group
- A10VO 140
- Edition
- 06/2020

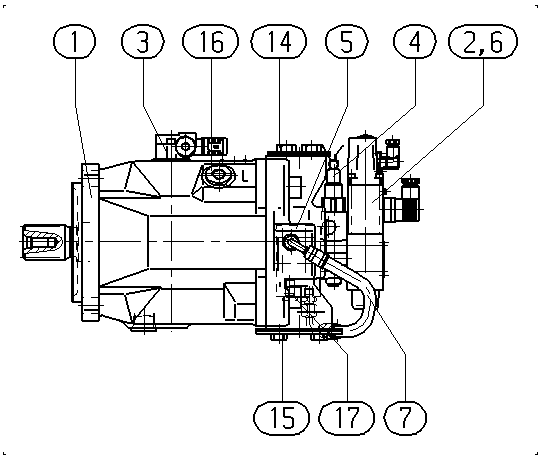

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910986935 | BASE UNIT Assembly parts list →L | 1 | ||
| R902424554 | PROPORTIONAL DIRECTIONAL VALVE Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902533494 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910988539 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910977098 | SOCKET HEAD CAP SCREW | 4 | ||
| R910995694 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R909154480 | SCREW PLUG | 1 | ||
| R909831377 | GUARD PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | Without through drive | N00 |
