Unit · AXIAL-PISTON MOTOR
A A10F M 63 /52W-VWC10N000R910994060
Axial piston motor Bosch Rexroth series A10FM, type code AA10FM63/52W-VWC10N000, material number R910994060. Nominal size: NG 63. Axial piston unit: swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum pressure 350 (A10F). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft Alternating (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 For reduced torque (W). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: flange ports A and B; laterally; same side Fastening thread metric according to ISO 6162 (10N00). Valves: without valve (0).
- Number
- R910994060
- Type code
- A A10F M 63 /52W-VWC10N000
- Group
- A10FM 63
- Edition
- 12/2020

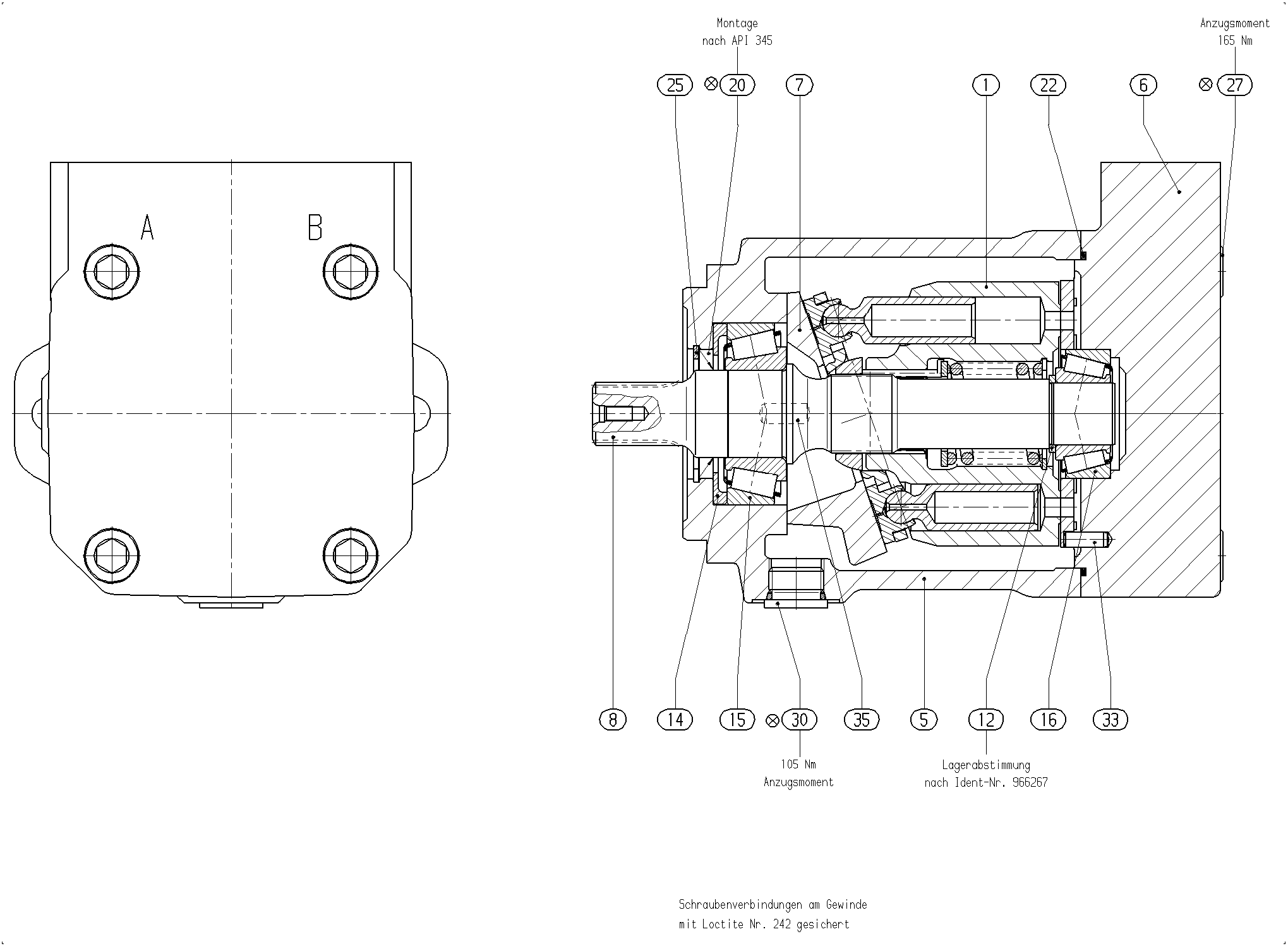

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910988068 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910994055 | PUMP HOUSING | 1 | ||
| R902407796 | CONNECTION PLATE | 1 | ||
| R910988598 | CAM PLATE | 1 | ||
| R902413424 | DRIVE SHAFT | 1 | ||
| R910966528 | ADJUSTMENT SHIM | 1 | ||
| R910987843 | STOP RING | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910973501 | TAPERED-ROLLER BEARING | 1 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R913050498 | O-RINGD | 1 | ||
| R910941918 | RETAINING RING | 1 | ||
| R909831123 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910575038 | STRAIGHT PIN | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum pressure 350 | A10F |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 63 | 63 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Alternating | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 For reduced torque | W |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Flange ports A and B; laterally; same side Fastening thread metric according to ISO 6162 | 10N00 |
| Valves | Without valve | 0 |
