Unit · AXIAL-PISTON PUMP
AA10VO60DR/52R-PSD12K01-SO891R910994107
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DR/52R-PSD12K01-SO891, material number R910994107. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 891.
- Number
- R910994107
- Type code
- AA10VO60DR/52R-PSD12K01-SO891
- Group
- A10VO 60
- Edition
- 06/2020

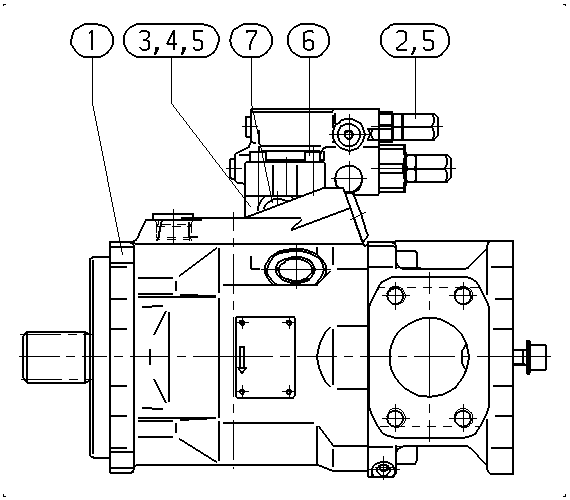

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910983164 | BASE UNIT Assembly parts list →L | 1 | ||
| R902456116 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910995014 | INTERMEDIATE PLATE | 1 | ||
| R910925310 | NOZZLE | 1 | ||
| R910515078 | O-RING | 3 | ||
| R910420794 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151692 | SCREW PLUG | 1 | ||
| 8 | R902434482 | SEAL | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 4-hole | D |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
