Unit · CONTROL
V A4VSO 250/355 HD1B /30R-PR910994433
Control Bosch Rexroth series A4VSO, type code VA4VSO250/355HD1B/30R-P, material number R910994433. Nominal size: NG 250. Axial piston unit: swashplate design, variable (A4VSO). Control device: pilot pressure characteristics 5.5...19 bar (3).
- Number
- R910994433
- Type code
- V A4VSO 250/355 HD1B /30R-P
- Group
- A4VSO 250
- Edition
- 06/2020

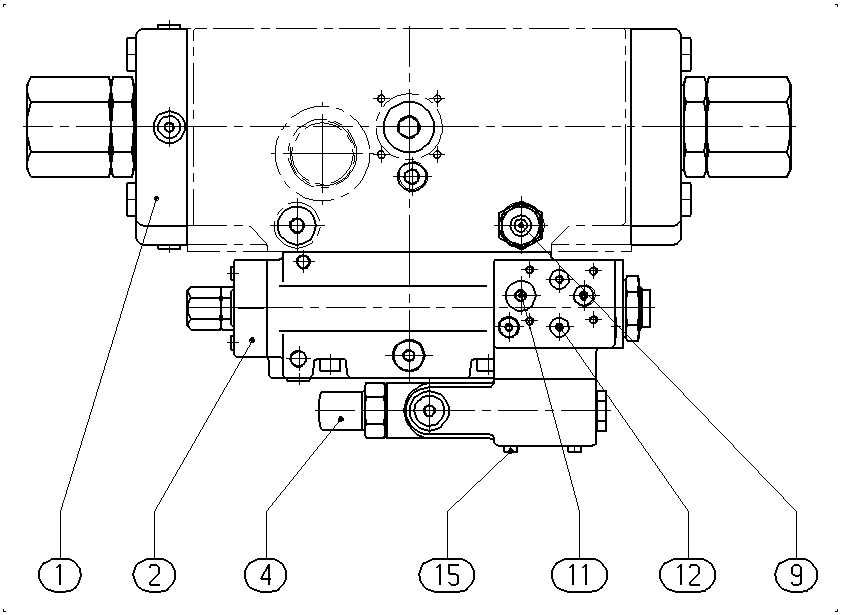

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910986863 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910989476 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910989099 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910962346 | CHECK VALVE | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R909154024 | SCREW PLUG | 2 | ||
| R910120162 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable | A4VSO |
| Size (NG) | 250 | 250 |
| Control device | Pilot pressure characteristics 5.5...19 bar | 3 |
| 55 | 55 | |
| Series | Series 3, index 0 | 30 |
