Unit · ADJUSTING PIECE
ADJUSTING PIECE A4VS 250,355 DR/30R910995077

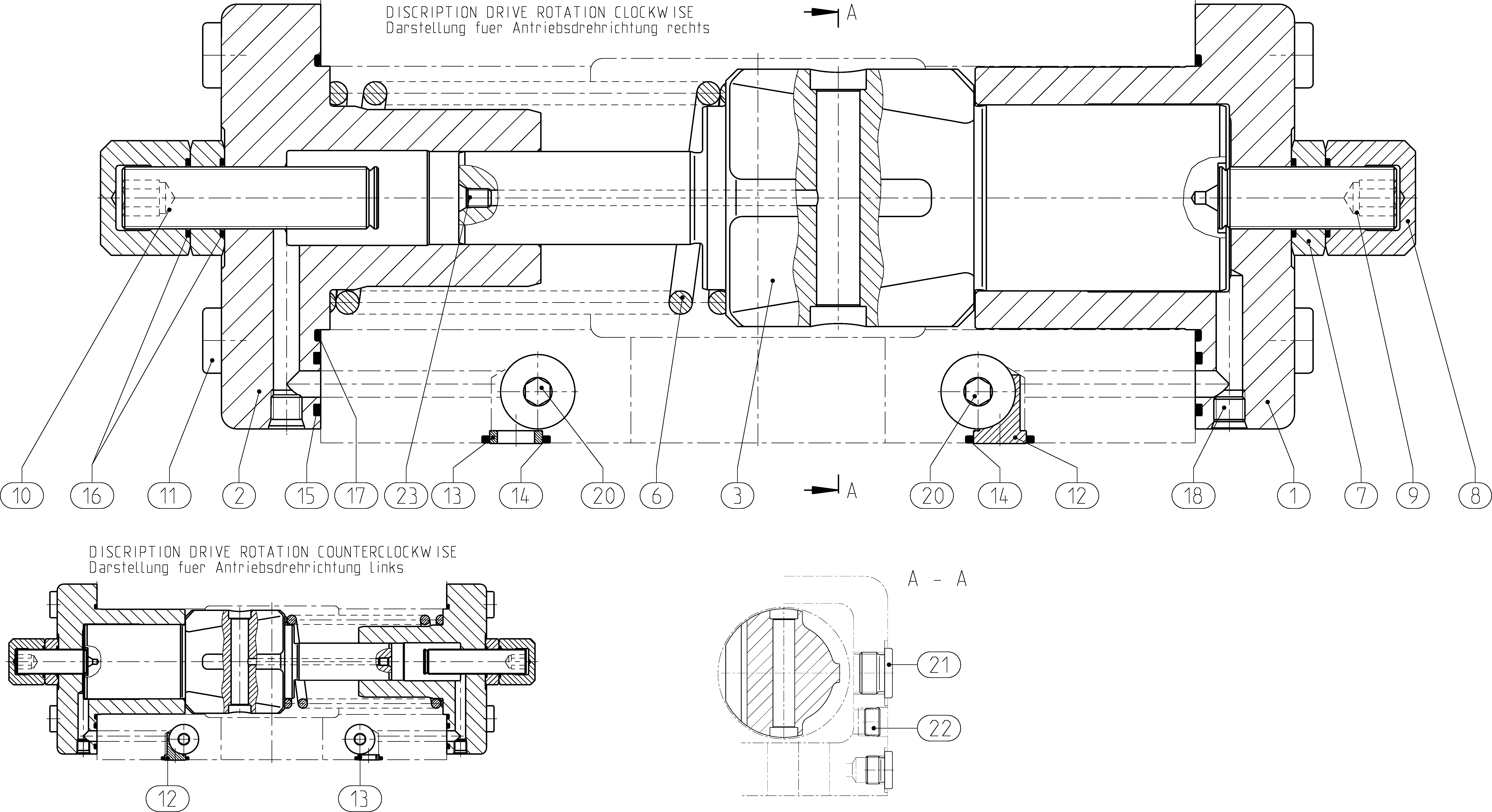

Adjusting piece Bosch Rexroth series A4VS, type code ADJUSTINGPIECEA4VS250,355DR/30, material number R910995077.
- Number
- R910995077
- Type code
- ADJUSTING PIECE A4VS 250,355 DR/30
- Group
- A4VS 250
- Edition
- 02/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910945279 | PISTON HOUSING | 1 | ||
| R910945395 | PISTON HOUSING | 1 | ||
| R902531046 | ADJUSTING PISTON | 1 | ||
| R910943107 | COMPRESSION SPRING | 1 | ||
| R910903328 | NUT | 2 | ||
| R910903330 | CAP NUT | 2 | ||
| R902519546 | STUD BOLT | 1 | ||
| R902519547 | STUD BOLT | 1 | ||
| R910604976 | SOCKET HEAD CAP SCREW | 8 | ||
| R910978692 | PLUG | 1 | ||
| R910978693 | SEAL RINGD | 1 | ||
| R910513482 | O-RINGD | 2 | ||
| R910923831 | R-RINGD | 2 | ||
| R910977045 | O-RINGD | 4 | ||
| R902650323 | R-RINGD | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153815 | SCREW PLUG | 2 | ||
| R909153365 | SCREW PLUG | 1 | ||
| R910987526 | SCREW PLUG | 1 | ||
| R910100951 | SETSCREW | 1 |
