Unit · AXIAL-PISTON PUMP

A A10V O100 DFEO/31R-PSC12K24 -SO487R910995159

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO100DFEO/31R-PSC12K24-SO487, material number R910995159. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 127-2 (C) 1 1/2 in 17T 12/24DP (K24). Special version no. 487.

Number
R910995159
Type code
A A10V O100 DFEO/31R-PSC12K24 -SO487
Group
A10VO 100
Edition
06/2020

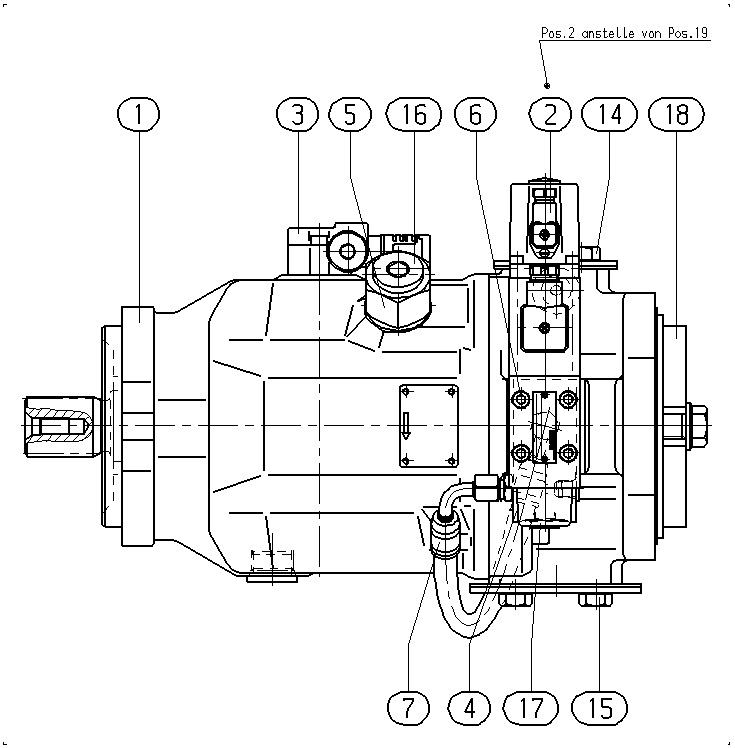

A A10V O100 DFEO/31R-PSC12K24 -SO487 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910995750BASE UNIT Assembly parts list →L1
R910947340INDUCTIVE POS.TRANSDUCER Assembly parts list →L1
R902409295INTERMEDIATE PLATE Assembly parts list →L1
R910913483ADAPTER Assembly parts list →L1
R910969083HOSE ASSEMBLY Assembly parts list →L1
R902400584FLANGE COVER1
R902400594FLANGE COVER1
R902602012SEAL SCREW1
R909831377GUARD PLUG1
R902602979FLANGE COVER1
19R902452844FLANGE COVER1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)100100
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
Through drive127-2 (C) 1 1/2 in 17T 12/24DPK24
