Unit · AXIAL-PISTON PUMP
A AA10VSO 28 DFEH/31R-PKC62N00 -SO479R910995186
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO28DFEH/31R-PKC62N00-SO479, material number R910995186. Nominal size: NG 28. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00). Special version no. 479.
- Number
- R910995186
- Type code
- A AA10VSO 28 DFEH/31R-PKC62N00 -SO479
- Group
- A10VSO 28
- Edition
- 06/2020

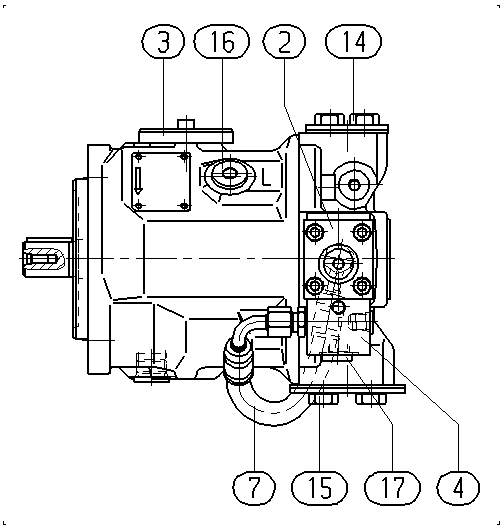

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910995467 | BASE UNIT Assembly parts list →L | 1 | |
| R902452844 | FLANGE COVER | 1 | ||
| R902449557 | FLANGE COVER | 1 | ||
| R902404047 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910969549 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R902400575 | FLANGE COVER | 1 | ||
| R902534067 | FLANGE COVER | 1 | ||
| R902602016 | SEAL SCREW | 1 | ||
| R909831377 | GUARD PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
