Unit · AXIAL-PISTON MOTOR
A A10F M 28 /52R-VRC10N000 -SO847R910995388
Axial piston motor Bosch Rexroth series A10FM, type code AA10FM28/52R-VRC10N000-SO847, material number R910995388. Nominal size: NG 28. Axial piston unit: swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum pressure 350 (A10F). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 For high torque (R). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: flange ports A and B; laterally; same side Fastening thread metric according to ISO 6162 (10N00). Valves: without valve (0). Special version no. 847.
- Number
- R910995388
- Type code
- A A10F M 28 /52R-VRC10N000 -SO847
- Group
- A10FM 28
- Edition
- 12/2020

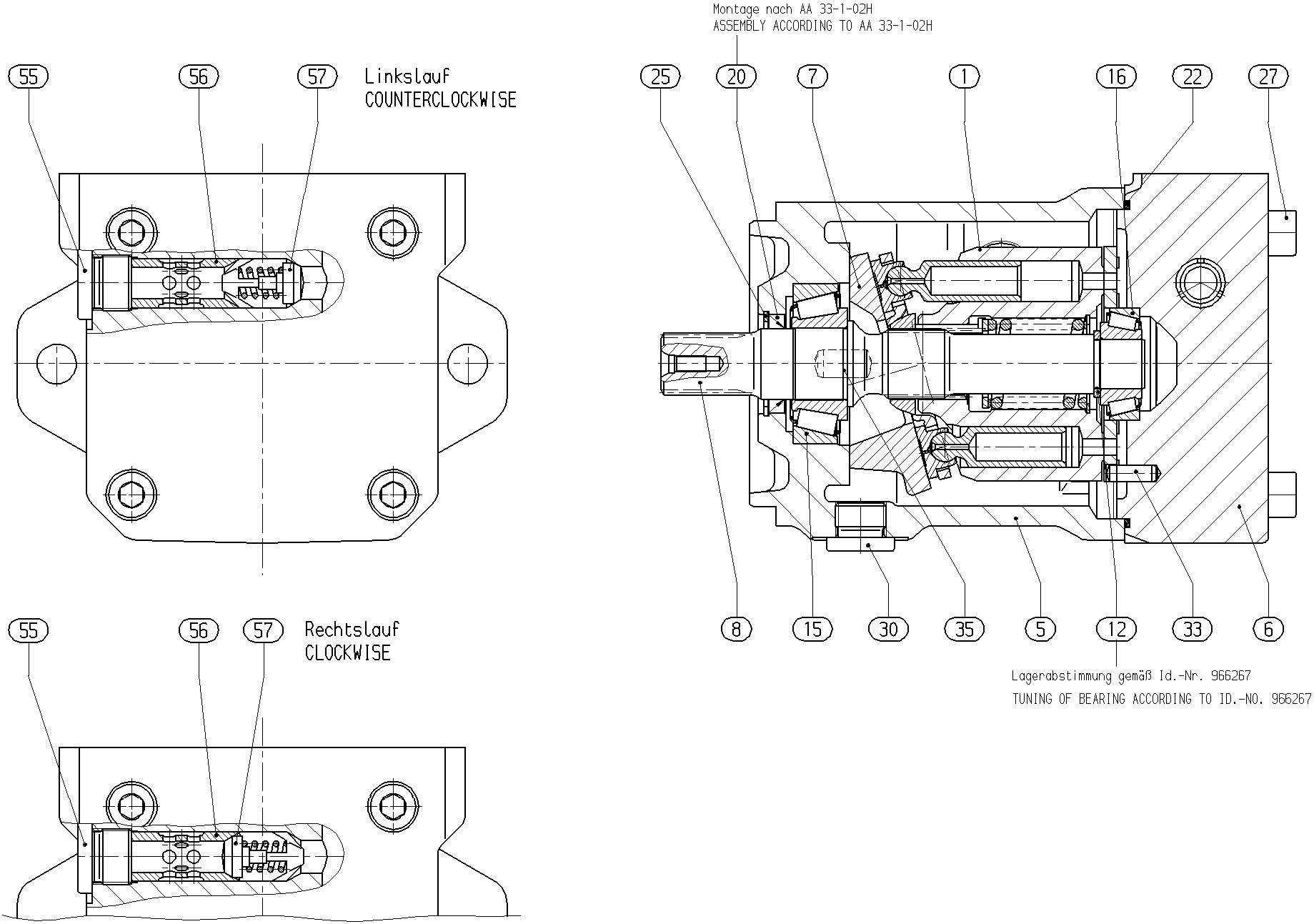

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910988570 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910995329 | MOTOR HOUSING | 1 | ||
| R910989611 | CONNECTION PLATE | 1 | ||
| R902549423 | CAM PLATE | 1 | ||
| R902417367 | DRIVE SHAFT | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910988019 | SHAFT SEALING RINGD | 1 | ||
| R902650851 | O-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910963995 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910924011 | STRAIGHT PIN | 2 | ||
| R909157040 | SCREW PLUG | 1 | ||
| R910989612 | VALVE SLEEVE | 1 | ||
| R910989620 | VALVE INSERT | 1 | ||
| 70 | R902805707 | SHIPPING PROTECTION | 2 | |
| 72 | R902602010 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum pressure 350 | A10F |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 28 | 28 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 For high torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Flange ports A and B; laterally; same side Fastening thread metric according to ISO 6162 | 10N00 |
| Valves | Without valve | 0 |
