Unit · AXIAL-PISTON PUMP
AA10VO45DFLR/31R-PSC62N00-SO923R910995589
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFLR/31R-PSC62N00-SO923, material number R910995589. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00). Special version no. 923.
- Number
- R910995589
- Type code
- AA10VO45DFLR/31R-PSC62N00-SO923
- Group
- A10VO 45
- Edition
- 06/2020

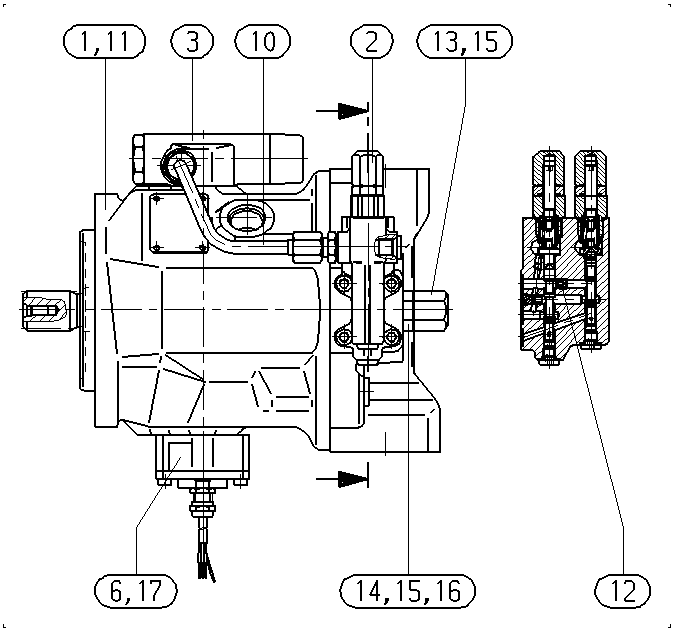

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910995549 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533361 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R900868651 | ASSEMBLY KIT | 1 | ||
| R910960164 | PIPING Assembly parts list →L | 1 | ||
| R902468380 | POWER DIAGRAM | 1 | ||
| R910925530 | NOZZLE | 1 | ||
| R910903349 | CAP NUT | 1 | ||
| R909154478 | SCREW PLUG | 1 | ||
| R910903390 | NUT | 1 | ||
| R910515124 | O-RING | 2 | ||
| R910917781 | SETSCREW | 1 | ||
| R910766658 | COUNTERSUNK-HEAD SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | Without through drive | N00 |
Other versions 34
- R902405892 A A10V O 45 DFLR/31R-PSC62N00
- R902411493 A A10V O 45 DFLR/31R-PSC62N00
- R902416482 A A10V O 45 DFLR/31R-PSC62N00
- R902432912 A A10V O 45 DFLR/31R-PSC62N00
- R902448008 A A10V O 45 DFLR/31R-PSC62N00
- R910910480 A A10V O 45 DFLR/31R-PSC62N00
- R910936696 A A10V O 45 DFLR/31R-PSC62N00
- R910936909 A A10V O 45 DFLR/31R-PSC62N00
- R910936950 A A10V O 45 DFLR/31R-PSC62N00
- R910937968 A A10V O 45 DFLR/31R-PSC62N00
- R910942624 A A10V O 45 DFLR/31R-PSC62N00
- R910943196 A A10V O 45 DFLR/31R-PSC62N00
- R910961707 A A10V O 45 DFLR/31R-PSC62N00
- R910962810 A A10V O 45 DFLR/31R-PSC62N00
- R910964035 A A10V O 45 DFLR/31R-PSC62N00
- R910970255 A A10V O 45 DFLR/31R-PSC62N00
- R910973086 A A10V O 45 DFLR/31R-PSC62N00
- R910975257 A A10V O 45 DFLR/31R-PSC62N00
- R910979534 A A10V O 45 DFLR/31R-PSC62N00
- R910999242 A A10V O 45 DFLR/31R-PSC62N00
- R910936340 A A10V O 45 DFLR/31R-PSC62N00 -SO 52
- R902401376 A A10V O 45 DFLR/31R-PSC62N00 -SO 97
- R910978795 A A10V O 45 DFLR/31R-PSC62N00 -SO 97
- R902425018 A A10V O 45 DFLR/31R-PSC62N00 -SO160
- R910979767 A A10V O 45 DFLR/31R-PSC62N00 -SO160
- R902417553 AA10VO45DFLR/31R-PSC62N00
- R902421644 AA10VO45DFLR/31R-PSC62N00
- R902425823 AA10VO45DFLR/31R-PSC62N00
- R902427438 AA10VO45DFLR/31R-PSC62N00
- R902433486 AA10VO45DFLR/31R-PSC62N00
- R910915872 AA10VO45DFLR/31R-PSC62N00-SO52
- R902462047 AL A10V O 45 DFLR/31R-PSC62N00
- R910986787 AL A10V O 45 DFLR/31R-PSC62N00
- R910995590 AL A10V O 45 DFLR/31R-PSC62N00 -SO923
