Unit · ROTARY GROUP
TW A4VSLO750 K/30L-VZHK00R910995725

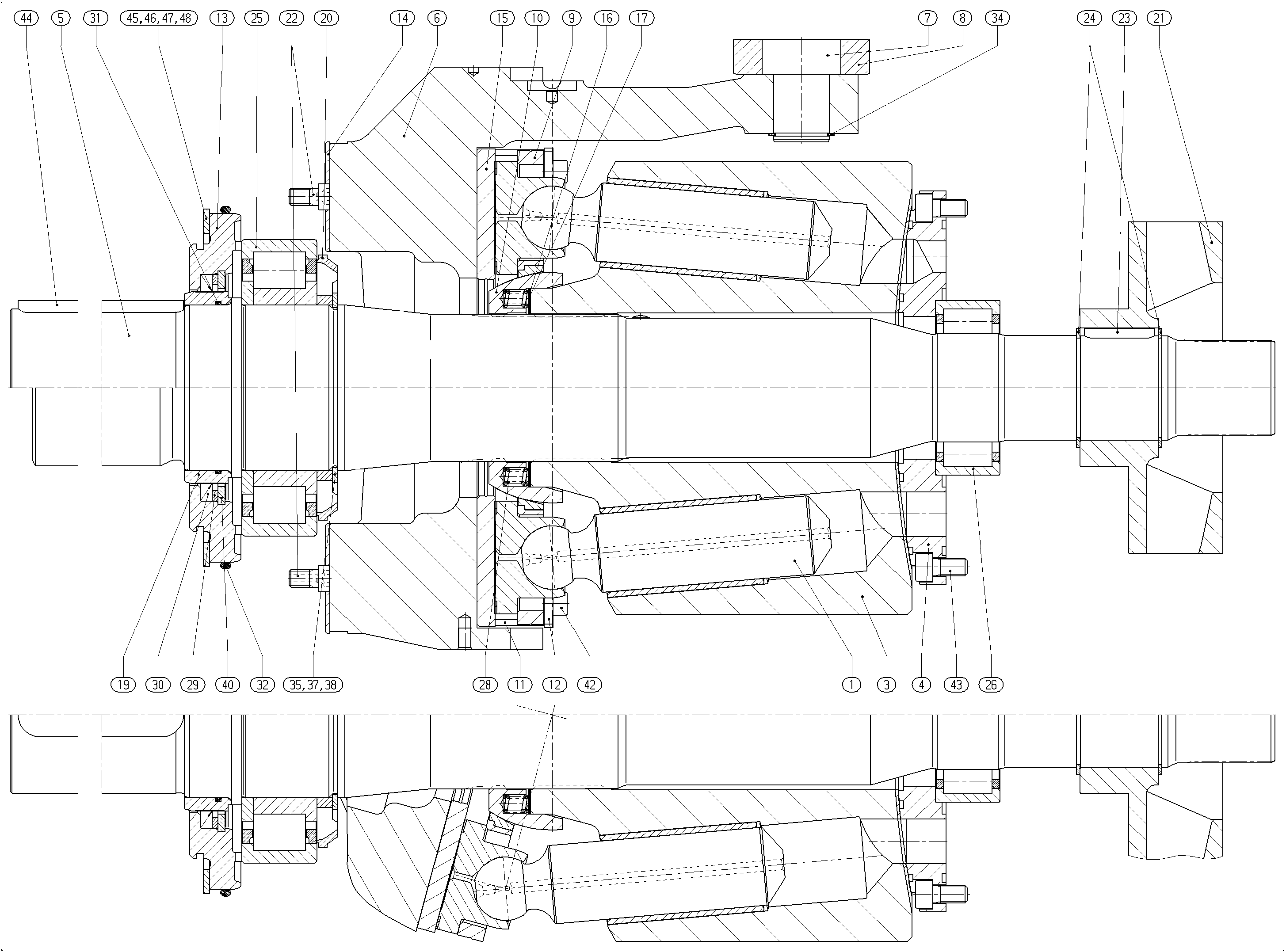

Rotary group Bosch Rexroth series A4VSLO, type code TWA4VSLO750K/30L-VZHK00, material number R910995725.
- Number
- R910995725
- Type code
- TW A4VSLO750 K/30L-VZHK00
- Group
- A4VSLO 750
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902477895 | PISTON PAD | 9 | ||
| R902435500 | CYLINDER | 1 | ||
| R910970263 | DISTRIBUTOR PLATE | 1 | ||
| R902412175 | DRIVE SHAFT | 1 | ||
| R910967562 | SWASH PLATE | 1 | ||
| R910935543 | DRIVER PIVOT | 1 | ||
| R910935544 | SLIDER | 1 | ||
| R910942064 | RETAINING PLATE | 1 | ||
| R910983757 | RETAINING BALL | 1 | ||
| R910967566 | SPACER SEGMENT | 4 | ||
| R902570177 | SEGMENT | 4 | ||
| R902404945 | SEALING FLANGE | 1 | ||
| R902570608 | BEARING SHELL | 2 | ||
| R910983271 | SLIDING DISC | 1 | ||
| R910969282 | SHIM RING | 2 | ||
| R910960755 | SHIM RING | 2 | ||
| R910993137 | SEAL BUSHING | 1 | ||
| R910984822 | FEED WHEEL | 1 | ||
| R910964695 | WHEEL | 1 | ||
| R910969259 | SETTING SCREW | 2 | ||
| R910964690 | PARALLEL KEY | 1 | ||
| R910082953 | RETAINING RING | 2 | ||
| R910966760 | CYL. ROLLER BEARING | 1 | ||
| R910978527 | CYL. ROLLER BEARING | 1 | ||
| R910965727 | COMPRESSION SPRING | 20 | ||
| R910995889 | SUPPORTING DISC | 1 | ||
| R902400800 | ROTARY SHAFT LIP SEAL | 1 | ||
| R910404209 | O-RING | 1 | ||
| R910967196 | O-RINGD | 1 | ||
| R910187976 | RETAINING RING | 1 | ||
| R910436674 | RETAINING RING | 1 | ||
| R910984818 | RETAINING RING | 1 | ||
| R910984817 | RETAINING RING | 1 | ||
| R910106127 | RETAINING RING | 1 | ||
| R902650871 | SOCKET HEAD CAP SCREW | 8 | ||
| R910109592 | SOCKET HEAD CAP SCREW | 6 | ||
| R910991999 | RETAINING RING | 1 | ||
| R910992000 | RETAINING RING | 1 | ||
| R910992001 | RETAINING RING | 1 | ||
| R910992002 | RETAINING RING | 1 |
