Unit · AXIAL-PISTON MOTOR

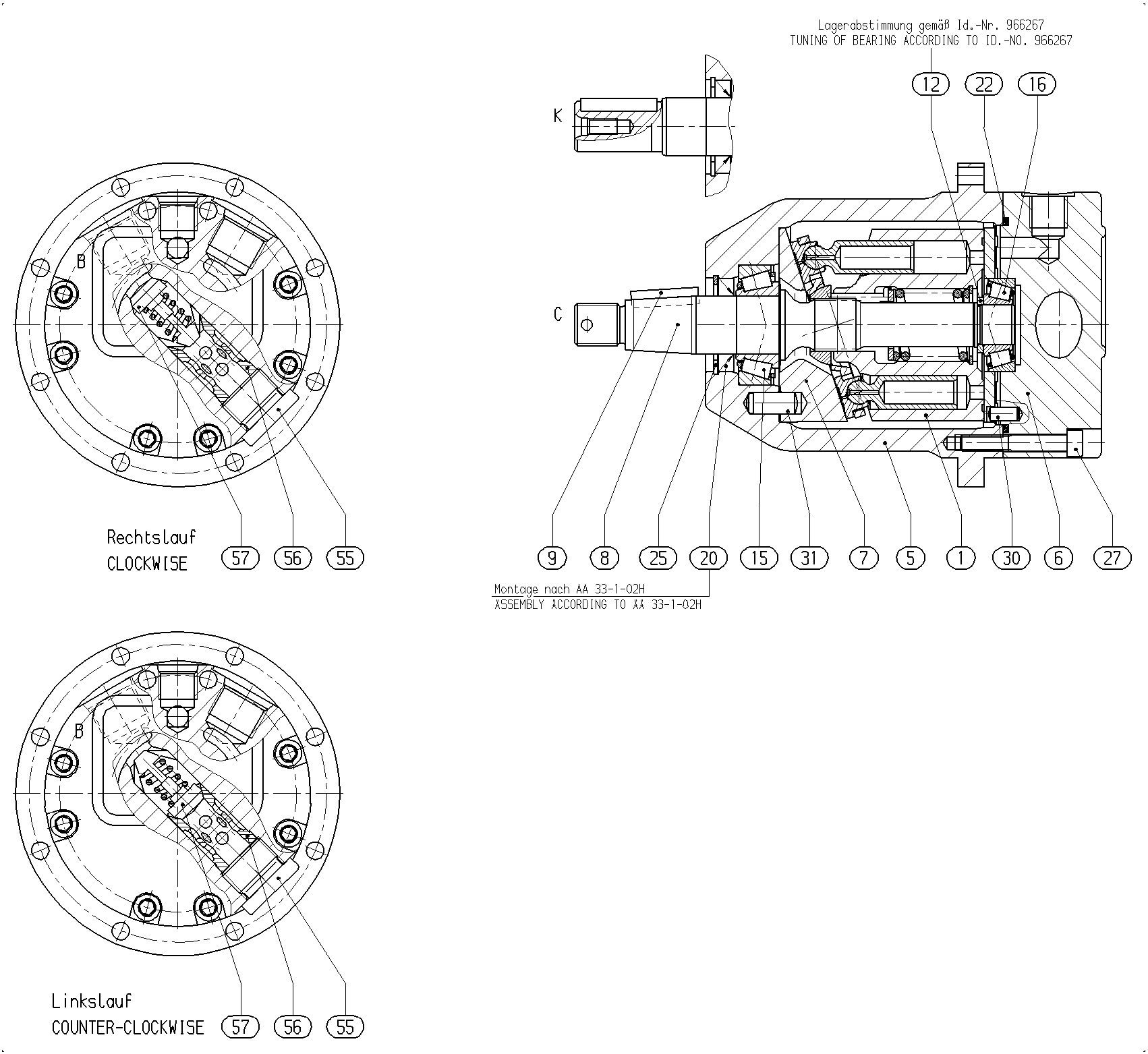

A A10F E 14 /52R-VCH16N002R910996074
Axial piston motor Bosch Rexroth series A10FM, type code AA10FE14/52R-VCH16N002, material number R910996074. Nominal size: NG 14. Axial piston unit: swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum (A10F). Operating mode: motor, plug-in design, open and closed circuits (E). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: tapered shaft with shaft key and threaded bolt (C). Mounting flange: 8-hole special flange (H). Working port: threaded port according A and B laterally, Threaded port, to DIN 3852-1 same side, metric (16N00). Valves: anti cavitation valve, integrated (2).
- Number
- R910996074
- Type code
- A A10F E 14 /52R-VCH16N002
- Group
- A10FE 14
- Edition
- 12/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910993825 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902429229 | MOTOR HOUSING | 1 | ||
| R902430503 | CONNECTION PLATE | 1 | ||
| R902431535 | CAM PLATE | 1 | ||
| R910967116 | DRIVE SHAFT | 1 | ||
| R910964231 | PARALLEL KEY | 1 | ||
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R909086994 | TAPERED-ROLLER BEARING | 1 | ||
| R910900853 | SHAFT SEALING RING | 1 | ||
| R910274135 | O-RING | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110159 | SOCKET HEAD CAP SCREW | 8 | ||
| R910911771 | STRAIGHT PIN | 1 | ||
| R910185906 | STRAIGHT PIN | 1 | ||
| R909157040 | SCREW PLUG | 1 | ||
| R910996046 | VALVE SLEEVE | 1 | ||
| R910989620 | VALVE INSERT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum | A10F |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 14 | 14 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Tapered shaft with shaft key and threaded bolt | C |
| Mounting flange | 8-hole special flange | H |
| Working port | Threaded port according A and B laterally, Threaded port, to DIN 3852-1 same side, metric | 16N00 |
| Valves | Anti cavitation valve, integrated | 2 |
