Unit · AXIAL-PISTON PUMP
A A4VSO 355 EO2 /30R-PPB13KB5R910996185
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO355EO2/30R-PPB13KB5, material number R910996185. Nominal size: NG 355. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft Clockwise (R). Drive shafts: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 (metric) 4-hole (B). Through drive: 125-2 1 1/4 in 14T 12/24DP A10VSO 71/31 (B5).
- Number
- R910996185
- Type code
- A A4VSO 355 EO2 /30R-PPB13KB5
- Group
- A4VSO 355
- Edition
- 07/2020

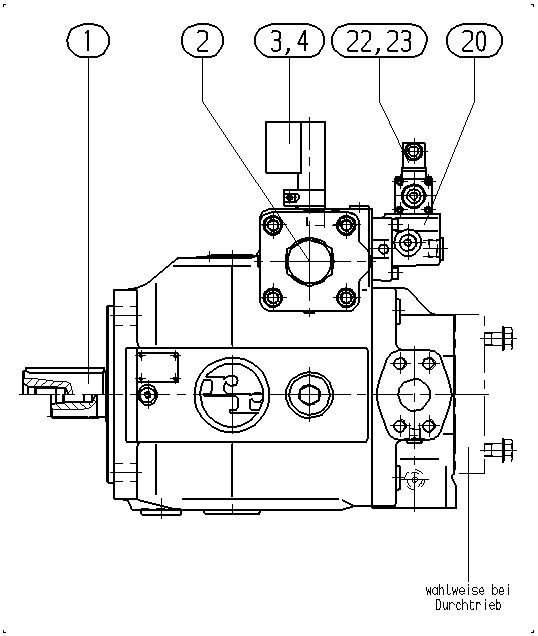

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910996148 | BASE UNIT Assembly parts list →L | 1 | ||
| R910984244 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910901155 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902537126 | PROTECTIVE TUBE Assembly parts list →L | 1 | ||
| R910984189 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910991713 | VALVE MODULE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| 61 | R902805709 | SHIPPING PROTECTION | 1 | |
| 62 | R902602206 | SEAL SCREW | 1 | |
| 63 | R902564146 | SHIPPING PROTECTION | 1 | |
| 71 | R902568998 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 355 | 355 |
| Series | Series 3, index 0 | 30 |
| Directions of rotation | Viewed on drive shaft Clockwise | R |
| Drive shafts | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 (metric) 4-hole | B |
| Through drive | 125-2 1 1/4 in 14T 12/24DP A10VSO 71/31 | B5 |
