Unit · AXIAL-PISTON MOTOR
AA10FM45/52W-VRC10N000CAT996258R910996563
Axial piston motor Bosch Rexroth series A10FM, type code AA10FM45/52W-VRC10N000CAT996258, material number R910996563. Nominal size: NG 45. Axial piston unit: swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum pressure 350 (A10F). Operating mode: motor, open and closed circuit (M). Direction of rotation: viewed on drive shaft Alternating (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 For high torque (R). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: flange ports A and B; laterally; same side Fastening thread metric according to ISO 6162 (10N00). Valves: without valve (0). Speed sensing: sensor DSA1/20 mounted (1 = one frequency and direction of rotation signal) (C).
- Number
- R910996563
- Type code
- AA10FM45/52W-VRC10N000CAT996258
- Group
- A10FM 45
- Edition
- 12/2020

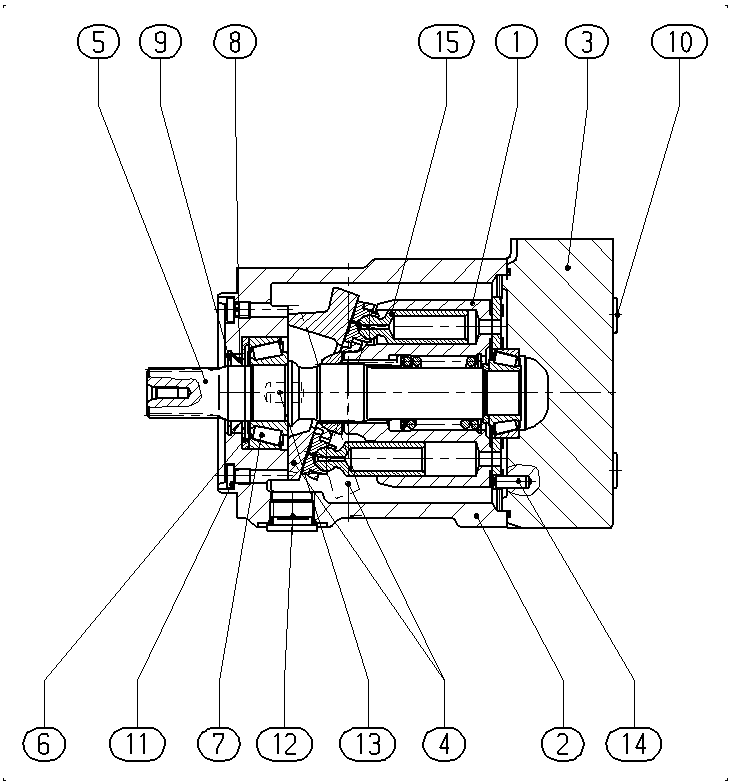

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435770 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910994510 | MOTOR HOUSING | 1 | ||
| R910989300 | CONNECTION PLATE | 1 | ||
| R910915926 | CAM PLATE | 1 | ||
| R902417391 | DRIVE SHAFT | 1 | ||
| R910987963 | STOP RING | 1 | ||
| R910995874 | BEARING SET | 1 | ||
| R910995964 | SEAL KITD | 1 | ||
| R902403814 | RETAINING RINGD | 1 | ||
| R910110256 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154024 | SCREW PLUG | 2 | ||
| R909153339 | SCREW PLUG | 1 | ||
| R910924011 | STRAIGHT PIN | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910997368 | PISTON | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum pressure 350 | A10F |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 45 | 45 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft Alternating | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 For high torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Flange ports A and B; laterally; same side Fastening thread metric according to ISO 6162 | 10N00 |
| Valves | Without valve | 0 |
| Speed sensing | Sensor DSA1/20 mounted (1 = one frequency and direction of rotation signal) | C |
