Unit · AXIAL-PISTON PUMP
ALA10VO140DR/31R-PSD62K17-SO294R910996732
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO140DR/31R-PSD62K17-SO294, material number R910996732. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure controller hydraulic (DR). Directions of rotation: viewed on drive shaft clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: top, bottom, opposite, fastening thread UNC (62). Through drive: 152-4 (D) 1 3/4 in 13T 8/16DP (K17). Special version no. 294.
- Number
- R910996732
- Type code
- ALA10VO140DR/31R-PSD62K17-SO294
- Group
- A10VO 140
- Edition
- 06/2020

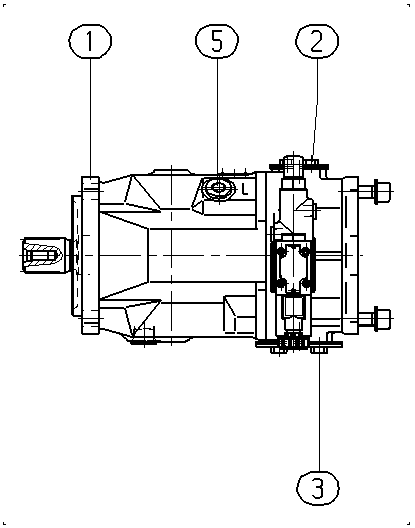

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910949054 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400585 | FLANGE COVER | 1 | ||
| R902400595 | FLANGE COVER | 1 | ||
| R909154480 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 140 | 140 |
| Control devices | Pressure controller hydraulic | DR |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | top, bottom, opposite, fastening thread UNC | 62 |
| Through drive | 152-4 (D) 1 3/4 in 13T 8/16DP | K17 |
