Unit · CONTROL
V A4VSG 250 HD1A /30R-VR910997177
Control Bosch Rexroth series A4VSG, type code VA4VSG250HD1A/30R-V, material number R910997177. Nominal size: NG 250. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V).
- Number
- R910997177
- Type code
- V A4VSG 250 HD1A /30R-V
- Group
- A4VSG 250
- Edition
- 07/2020

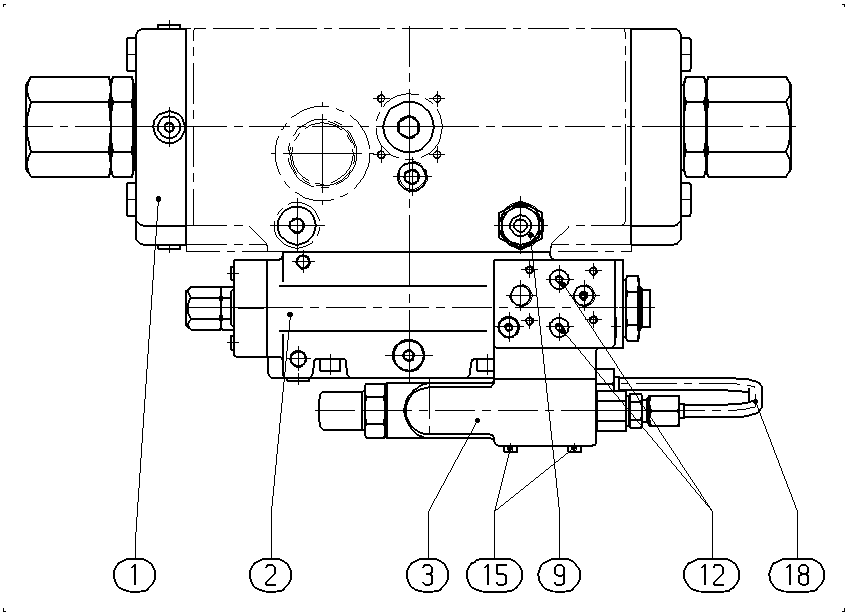

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910991566 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910989473 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910989590 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910962346 | CHECK VALVE | 1 | ||
| R909156863 | SCREW PLUG | 2 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R910989845 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 250 | 250 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
